Subcontract laser cutting · Shobdon, Herefordshire
Your parts, laser cut in Herefordshire
Trade and one-off laser cutting in mild steel, stainless, aluminium, brass and copper. Send a drawing, get a clear quote, and we’ll supply the material and cut your parts on our 6 kW Amada fibre laser, from a single prototype to regular production batches.
McIntosh Industries Ltd · established 2012
- From 1 dayTurnaround, as quick as
- ±0.1 mmTypical accuracy
- 3000 × 1500 mmLargest sheet
- 6 kWAmada ENSIS 3015 AJ fibre laser
- One-offs to batchesPrototypes and repeat orders
Materials
Metals and thicknesses we cut
Mostly steel, stainless and aluminium. Tell us the grade and finish and we'll confirm the thickness we can cut. Flat sheet and plate only.
| Material | Thickness | Thickness range on a 0–32 mm scale | Grades | Finishes |
|---|---|---|---|---|
| Mild steel | 0.9–32 mm | CR4 · S275 · S355 · Hardox | Dry or oiled | |
| Stainless steel | 0.9–30 mm | 304 · 316 | Mill, brushed or polished | |
| Aluminium | 1.5–12 mm | Tell us the grade you need | Mill, brushed or polished | |
| Brass / copper | 1–15 mm | Depends on grade: please ask before you design around it | – |
Sheets up to 3000 × 1500 mm. We normally supply the material: tell us the grade and thickness and we’ll order it in for your job.
Four steps
From drawing to finished parts
-
Send a drawing
A DXF, DWG, STEP or PDF is best; for simple shapes a sketch or photo will do. Tell us how many, the material and the thickness.
-
We check and price it
We check it can be made as drawn, ask about anything unclear, then send a written quote with a lead time.
-
Cut on the Amada
Your parts are cut on our 6 kW Amada fibre laser, then folded, welded and finished here if you need it.
-
Collected or delivered
Collect from us in Shobdon, or we deliver across the UK on our standard pallet or FedEx rates.
From the workshop
Recent work
Brackets, fixtures, frames, enclosures and welded assemblies, as one-offs and repeat runs. All cut on our Amada in Shobdon.
-
On the laser bedParts nested on the 6 kW Amada -

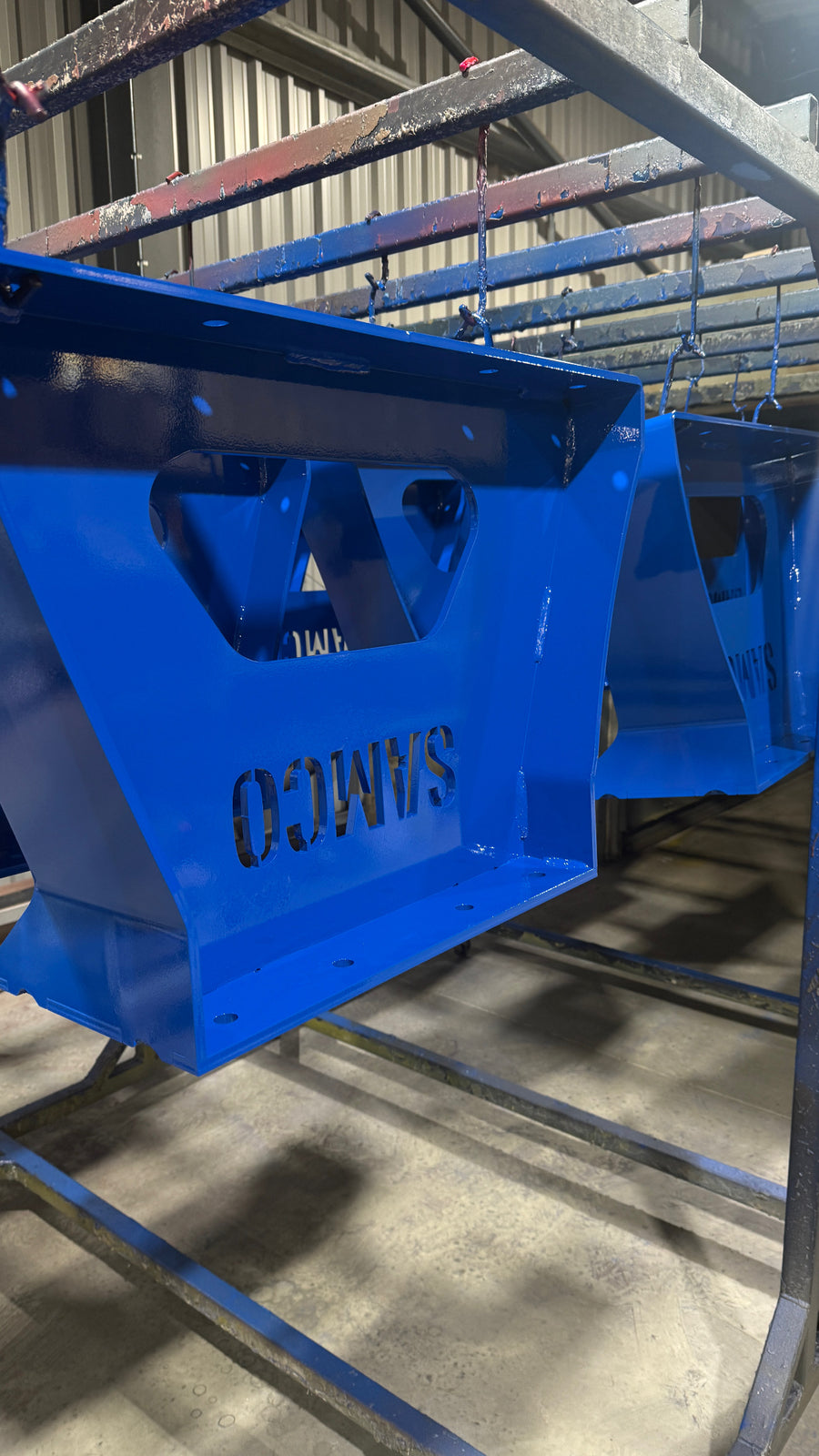

BracketsCut, folded and powder coated -
Stainless enclosuresCut, folded and welded -
Thick plateHeavy profiles in mild steel -
Corten panelsDecorative cut patterns -

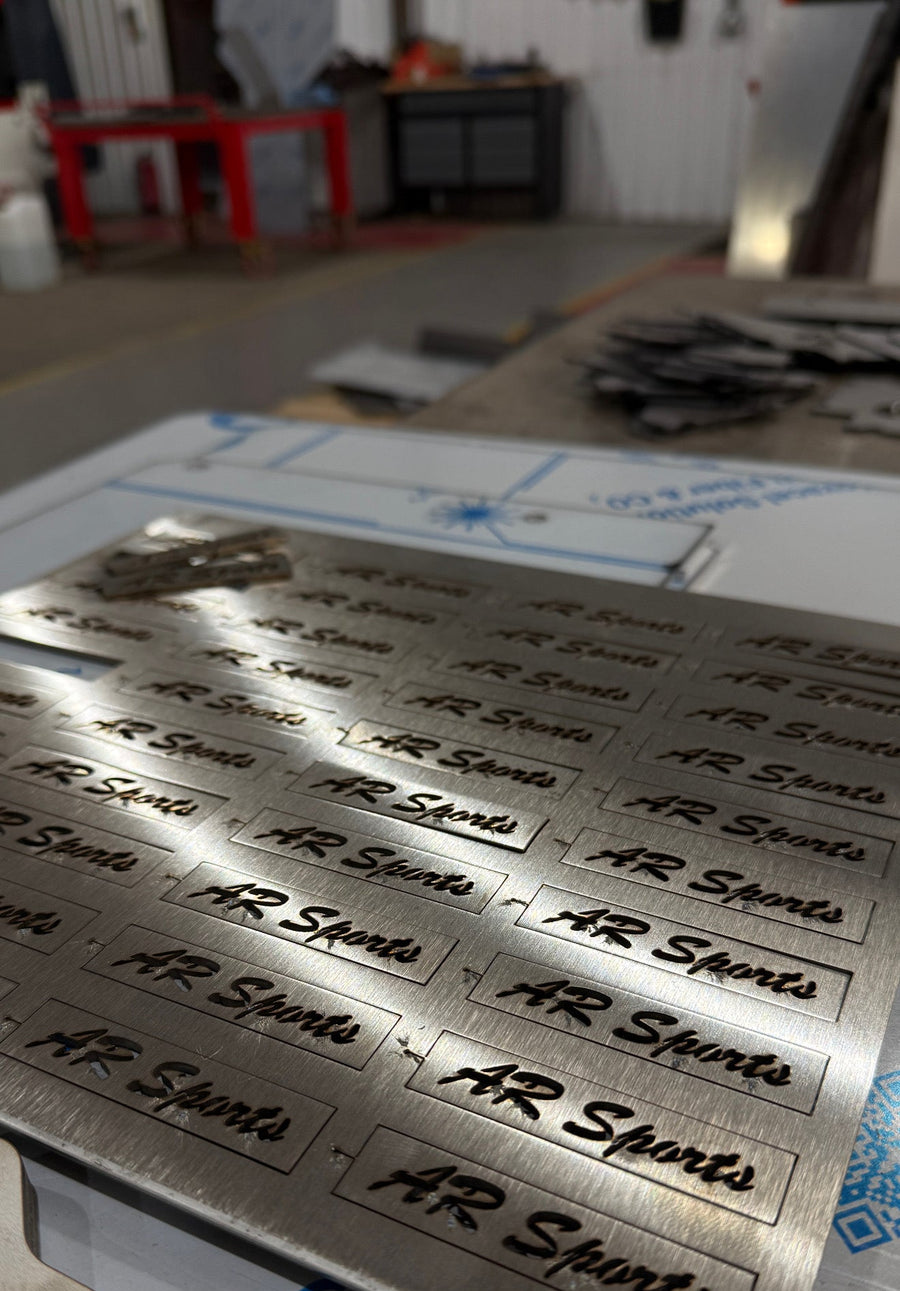

Signs & stencilsDetailed one-offs -
Perforated traysCut and folded in batches -

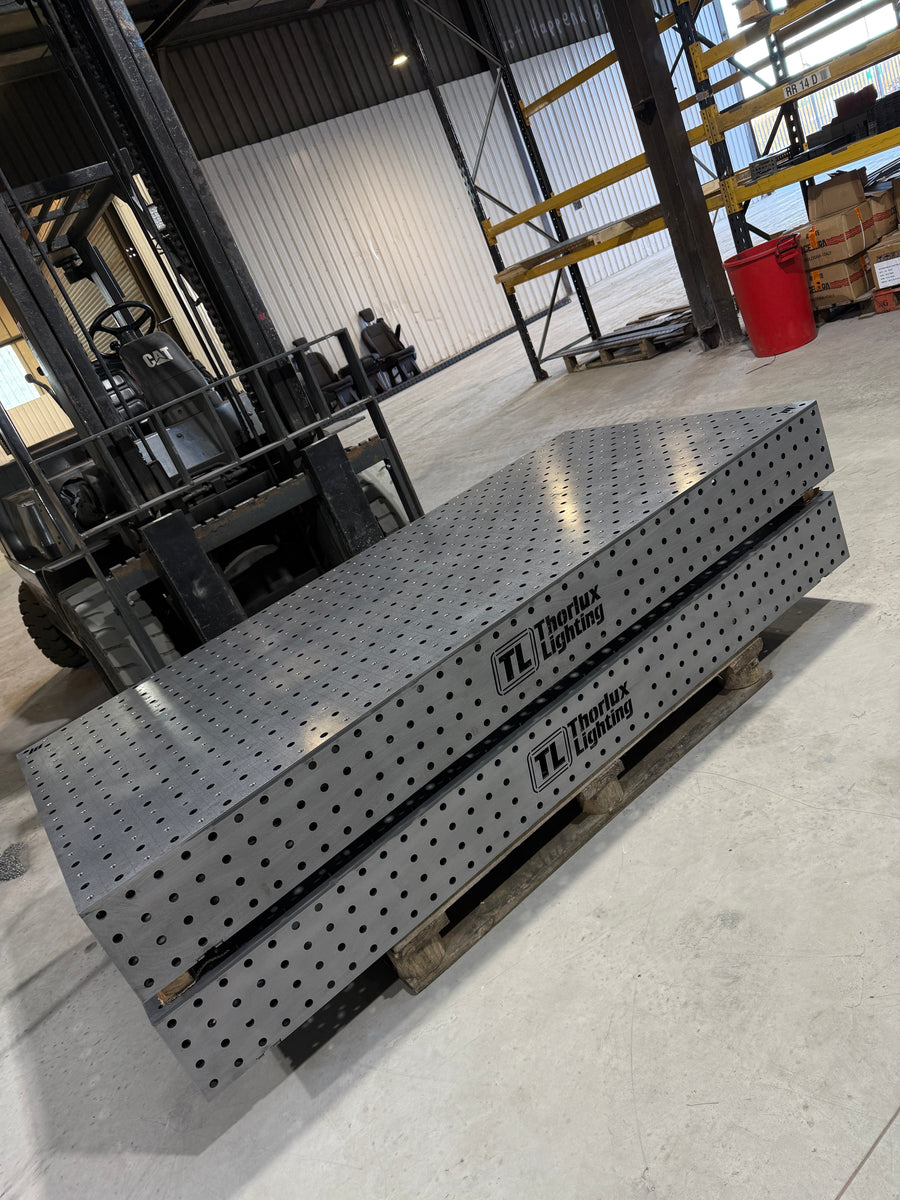

Batch workRepeat orders cut from the same file -

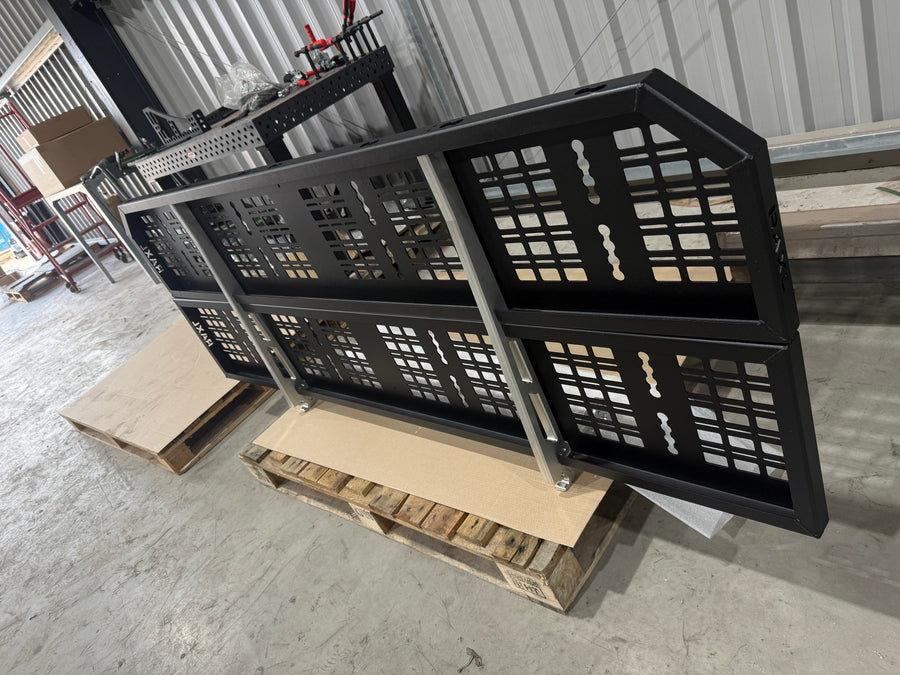

Frames & weldmentsBuilt up in our fabrication bay
Cutting is only the start
Cut, bent, welded and coated in one building
We'd rather make the whole thing than just cut a profile. Folding, welding and powder coating happen in the same building as the laser, so your job isn't passed from firm to firm.
Folding
Bent on the Amada press brake in our workshop, so brackets, trays and formed panels come back ready to fit.
Welding & fabrication
MIG and TIG welded and put together by the people who build our tables.
Powder coating & finishing
Deburred, prepared and powder coated when you want parts ready to use straight away.
Laser cutting quote
Start with a drawing
Tell us what you need. We’ll check it can be made as drawn and come back with a written quote and a lead time.
What to include
- A drawing: DXF, DWG, STEP or PDF (a sketch or photo is fine for simple shapes)
- How many you need
- Material, grade and thickness
- Any folding, welding or powder coating
Send your drawing
Can’t see the form? Email your drawing to [email protected] or call 01432 381 233.
