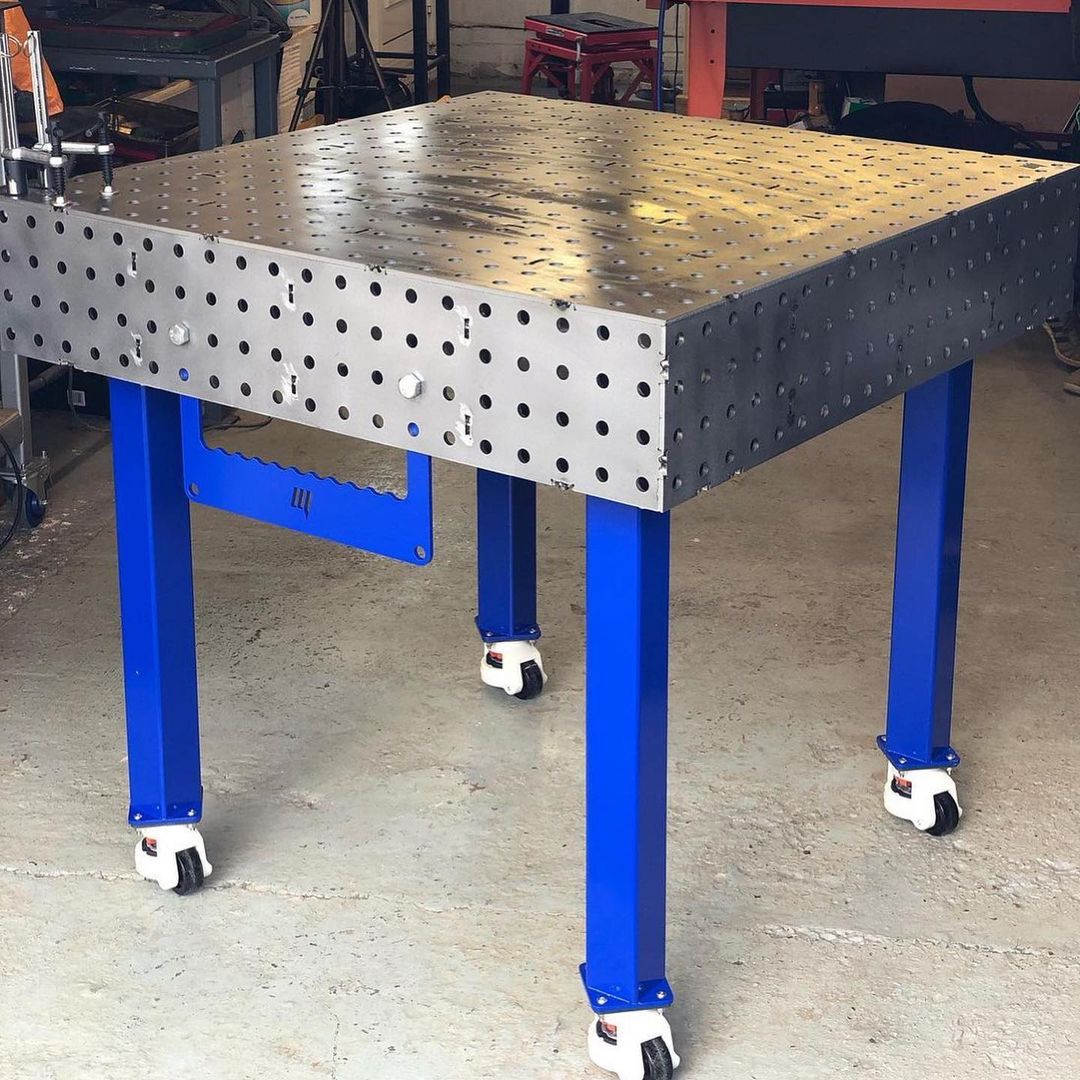

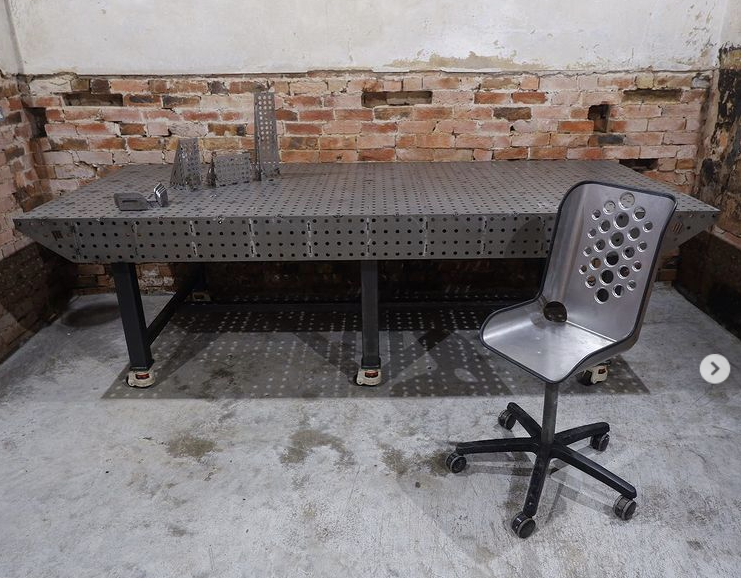

MAC PRO 6 Modular Welding Fixture Table, 6mm Top, 16mm Holes, 1m x 1m to 2.9m x 1.4m

Our PRO-6 tables are the ultimate professional modular welding table fixture system. These tables are designed inhouse using the tab and slot locking interface. All PRO tables have a 200mm rib sub-frame offering maximum strength and accuracy. The PRO-6 is supplied with a material thickness of 6mm. If you do require a thicker material, please check our PRO-8 or PRO-10 ranges.

Unlike other imports and cheaper constructions, we design superior sub-frame cross bracing as this is the most critical part of the fixture table to ensure a truly flat and accurate fabrication surface. We design, test and manufacture everything in house and the UK to maintain a high quality of control.

As standard all our tables and tooling include the industry standard 16mm hole pattern (50mm hole centres) to work with all industry fixture 16D tooling.

We only use Hot Rolled, Pickled and Oiled S275 structural mild steel. What this means is just after the production the sheet steel is run through an acid bath (Pickling) to remove any impurities, rust and mill scale from the surfaces of the steel. This leaves the sheet raw and unprotected, so a light covering of oil is used to protect it. Using HRPO is nicer for our fibre laser cutter as the laser doesn’t need to cut through mill scale and impurities which can and eventually affect the accuracy of the laser cutter therefore using HPRO Steel gives you precision cut parts which in our opinion they look more awesome than the dreaded mill scale.

PRO 6 tables have 16D (16mm) holes only. Tapped holes are available as a custom order only: contact us for a quotation.

Have you seen our tables with painted legs? Want the same?  We offer 2k Painted Legs any RAL! Contact us for a quotation.

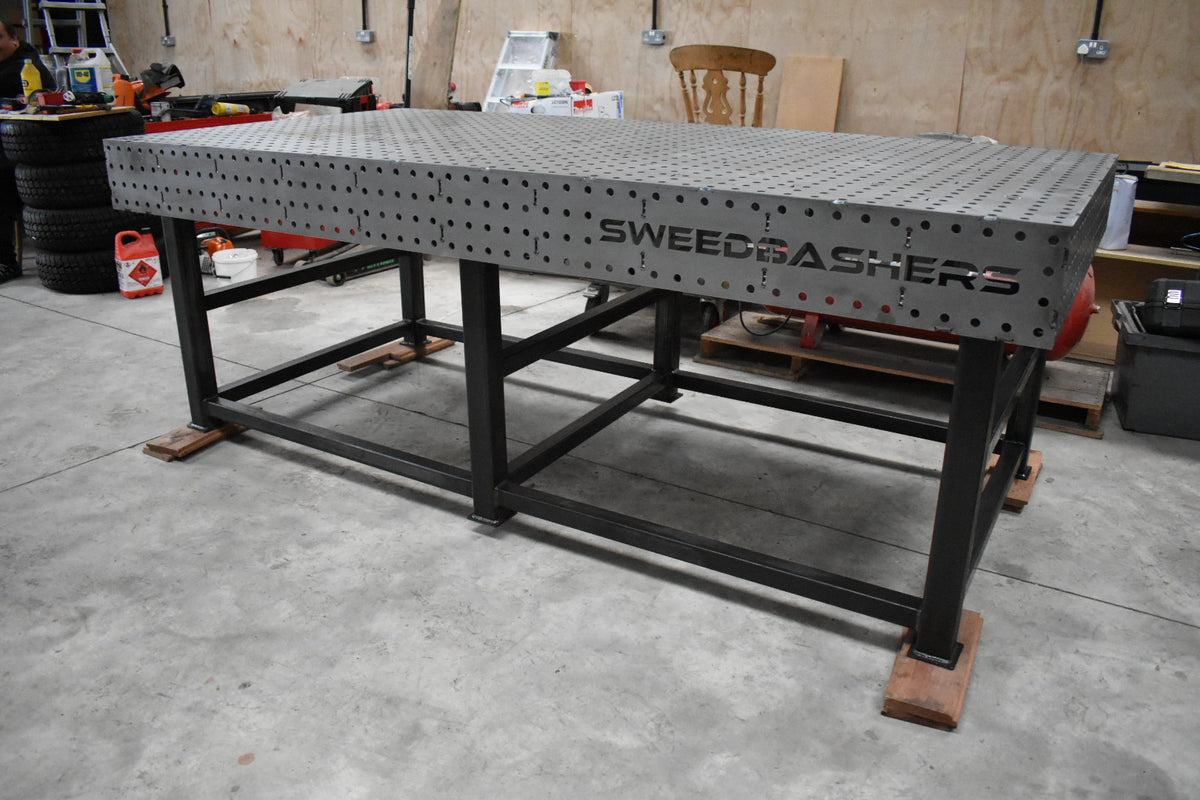

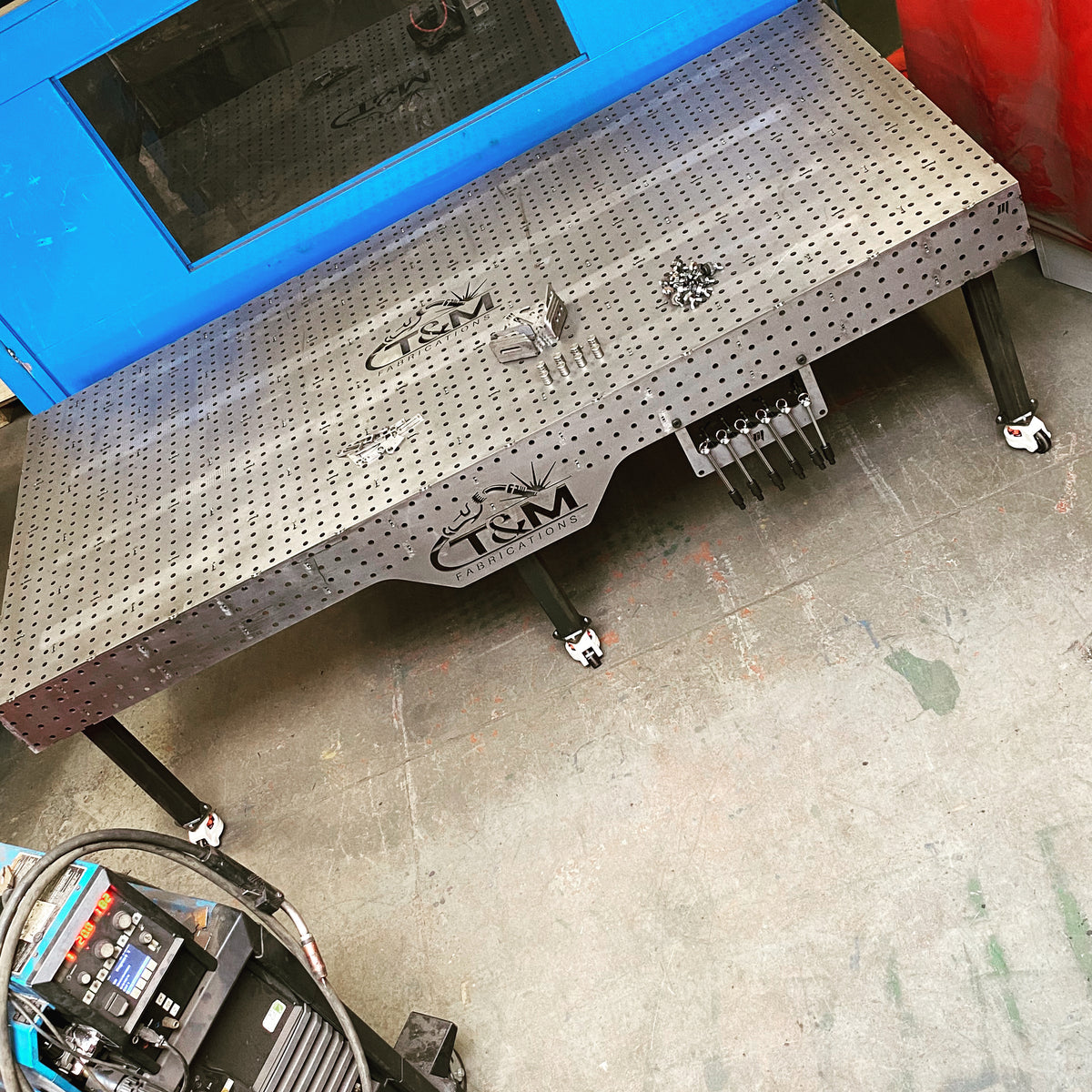

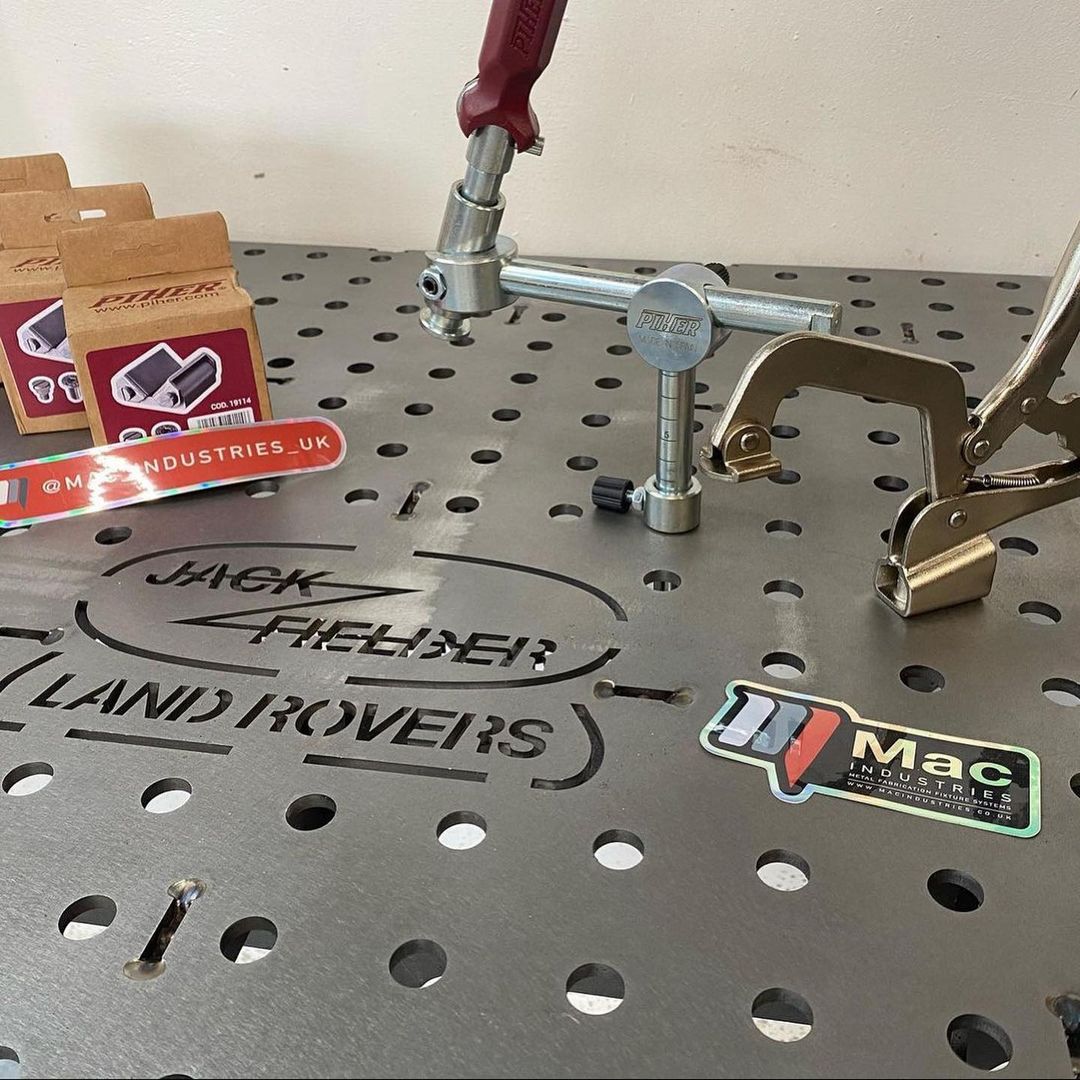

Have a Logo which you would like to cut into the table? No Problem! We will do that Free of charge! Please note you may see in some of our images the side plate logo which dips lower this is an additional charge due extra material due to the material nesting.

Mac Industries PRO Table Key Features:

• PRO-6 Top plate 6mm Material Thickness

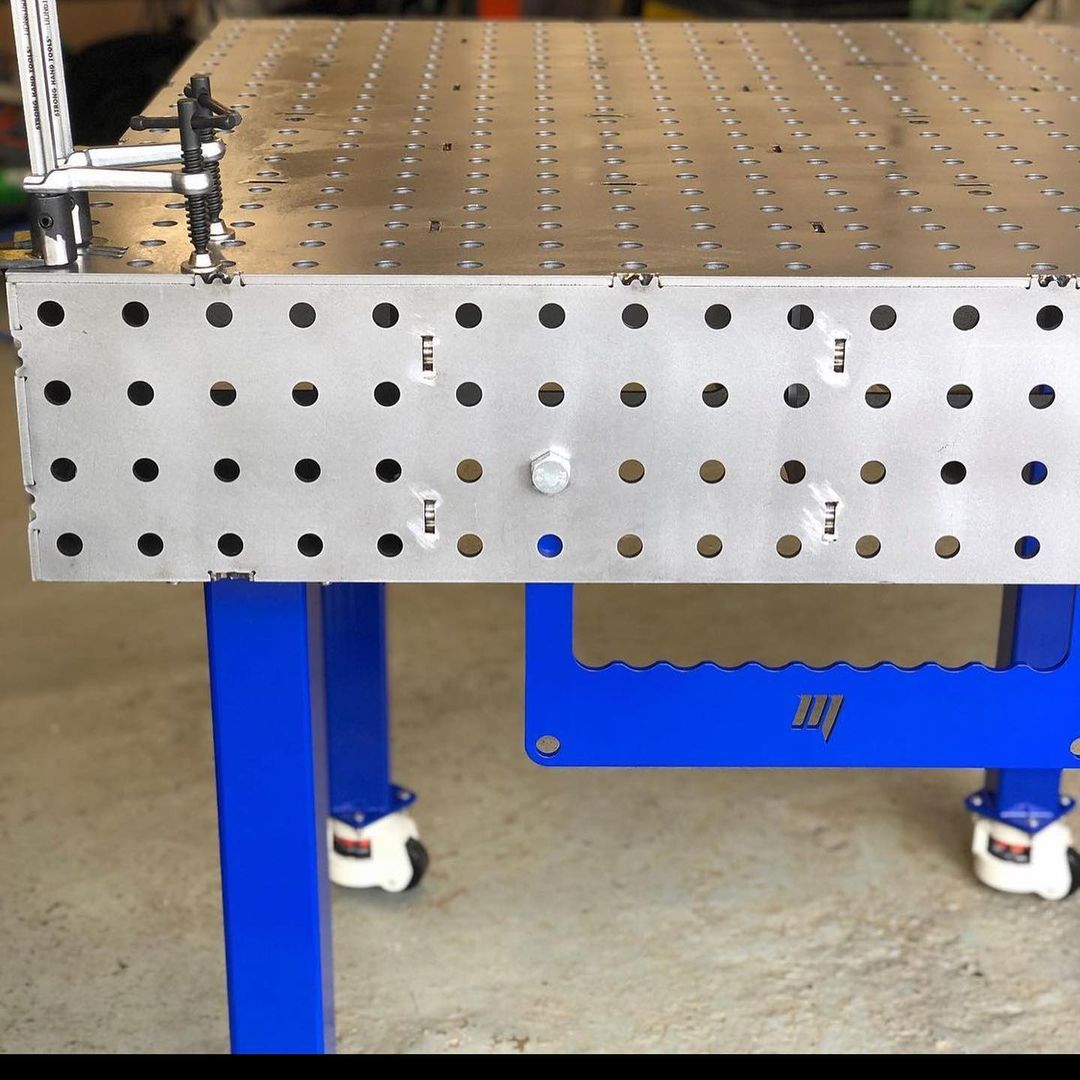

• All Mac Industries “PRO” Fixture Welding tables come with a 200mm fixture skirt/sides with 16mm holes at 50mm centres (4x holes deep)
• Engineered in house with our Tab and slots interlock
• 16mm securing hole 50mm apart on centres to work with all 16mm tooling and tables

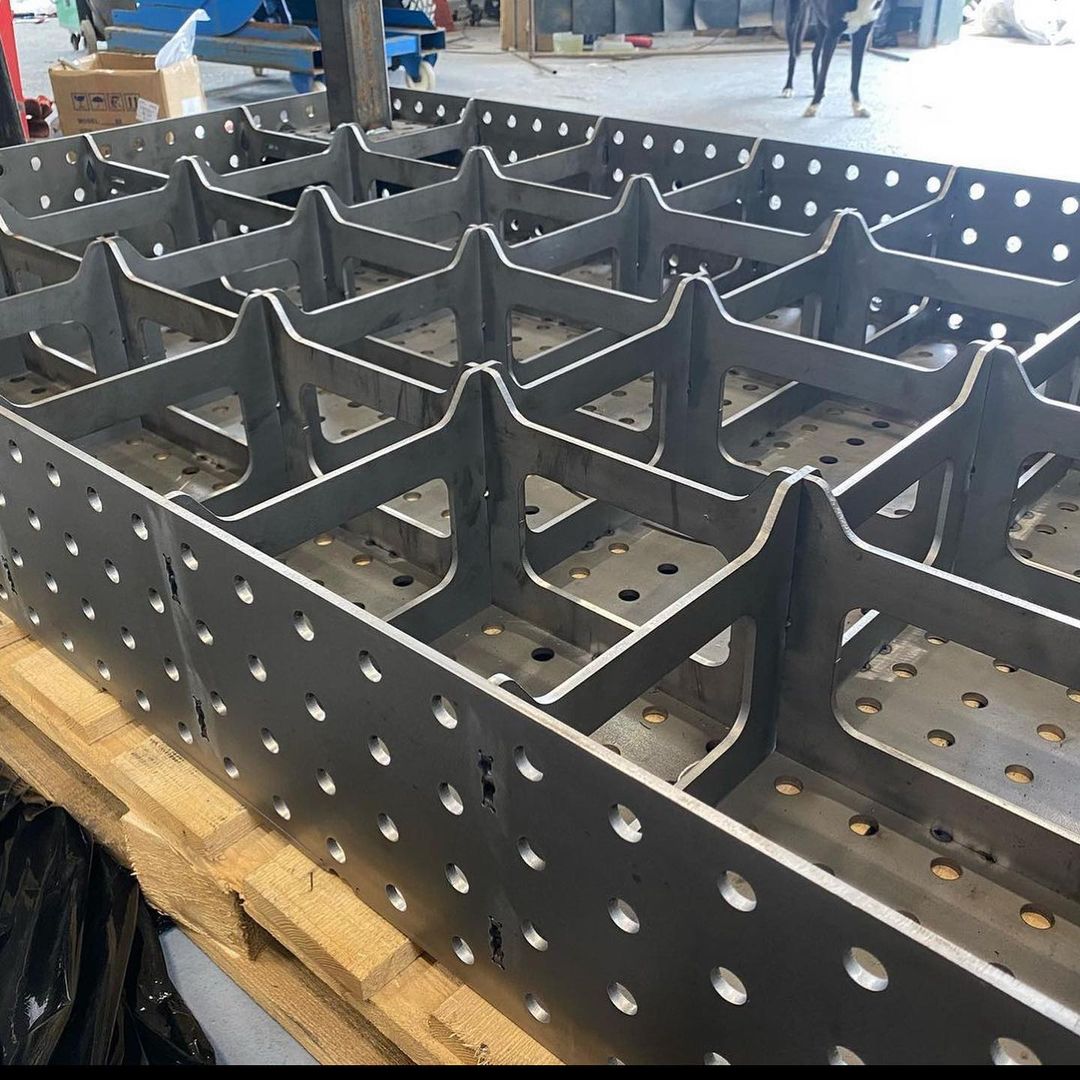

• Super strong Interlocking sub-frame every 4/5 holes spacing
• ALL Sub-frame parts from 6mm thick S275 HRPO structural grade mild steel
• We are very proud to guarantee a tolerance of +/- 0.1mm of all our laser cutting.
• 16mm holes on 50mm centres work with industry standard 16mm & 5/8" tools. 16D (16mm) holes only. Tapped holes are available as a custom order only.

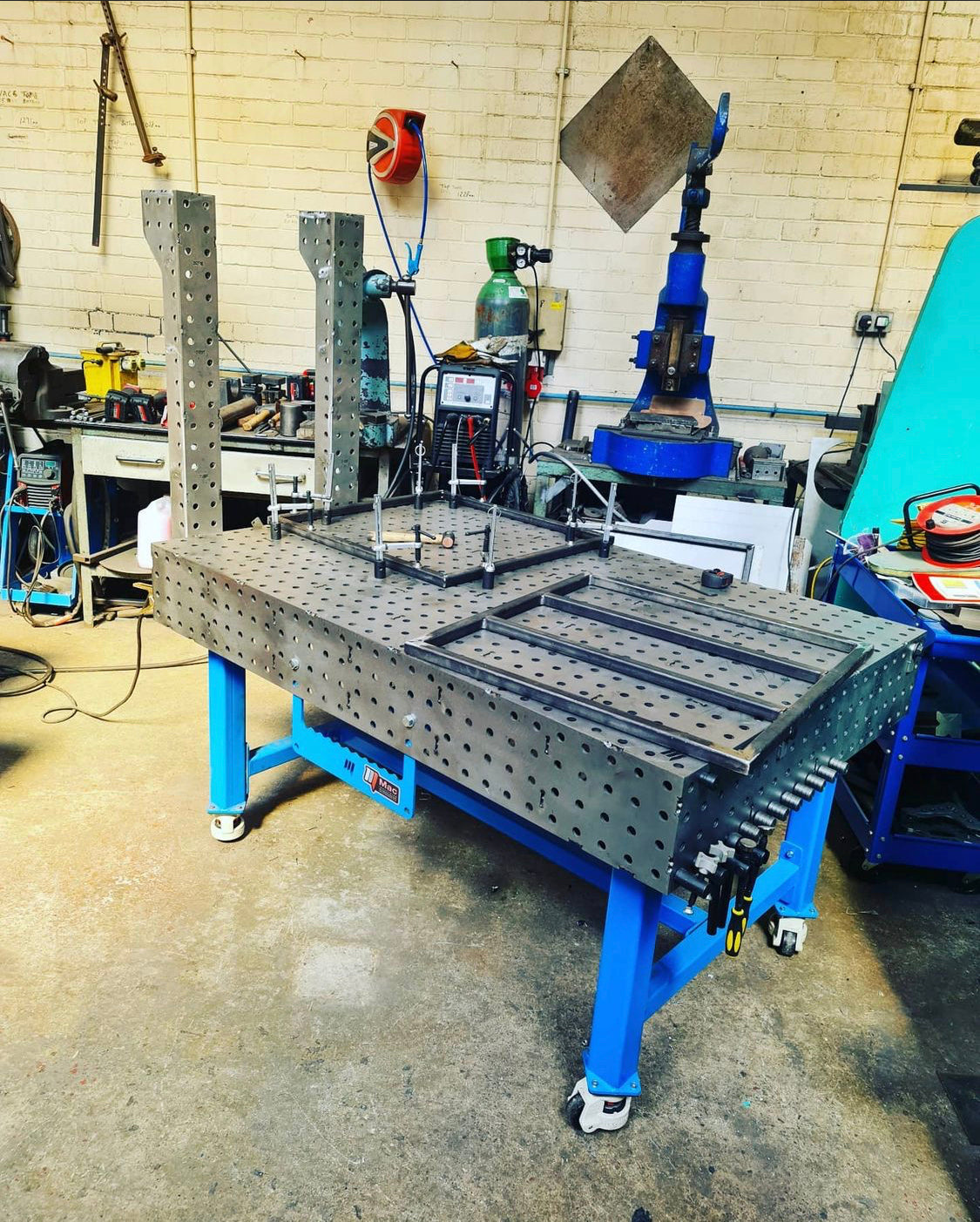

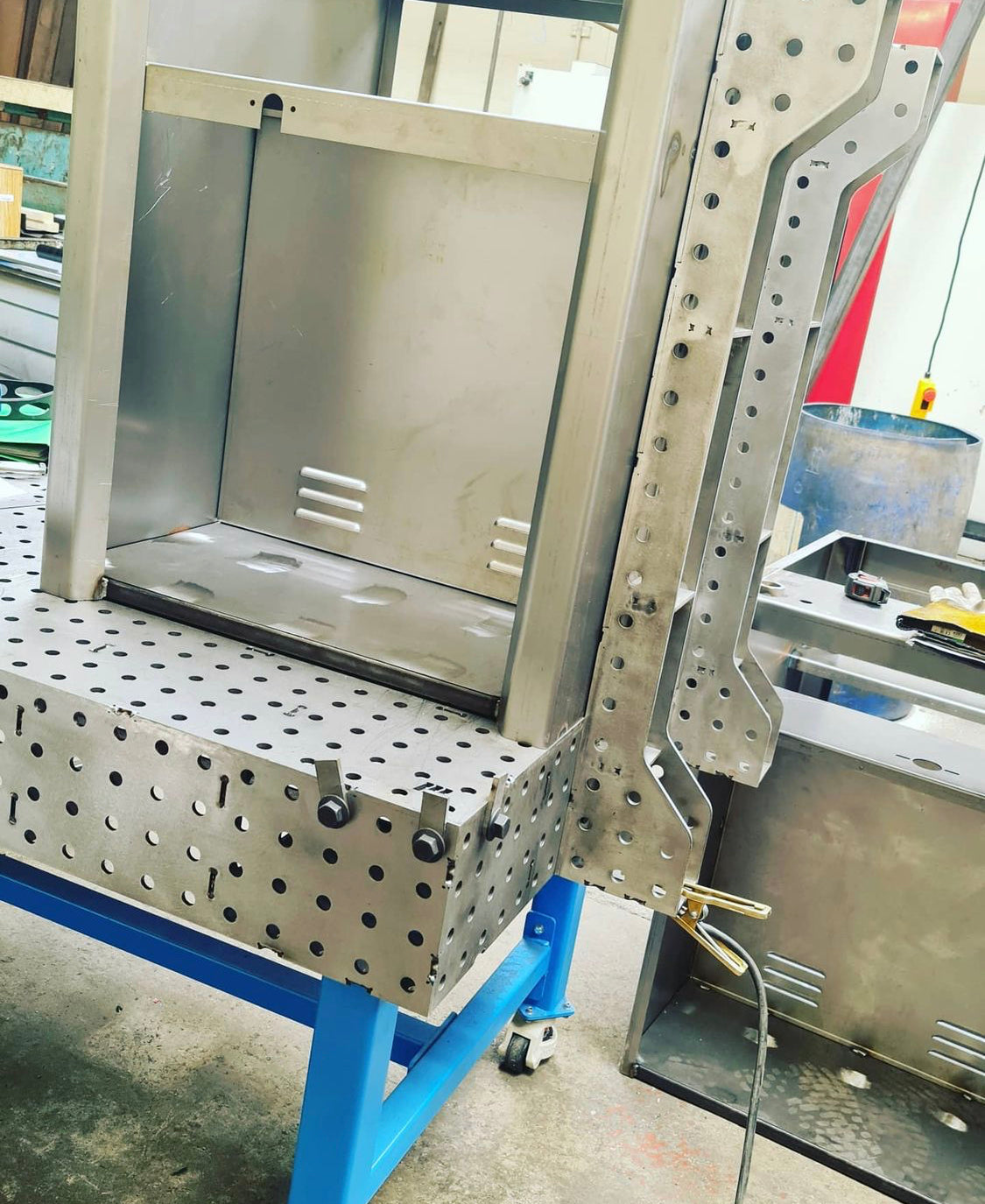

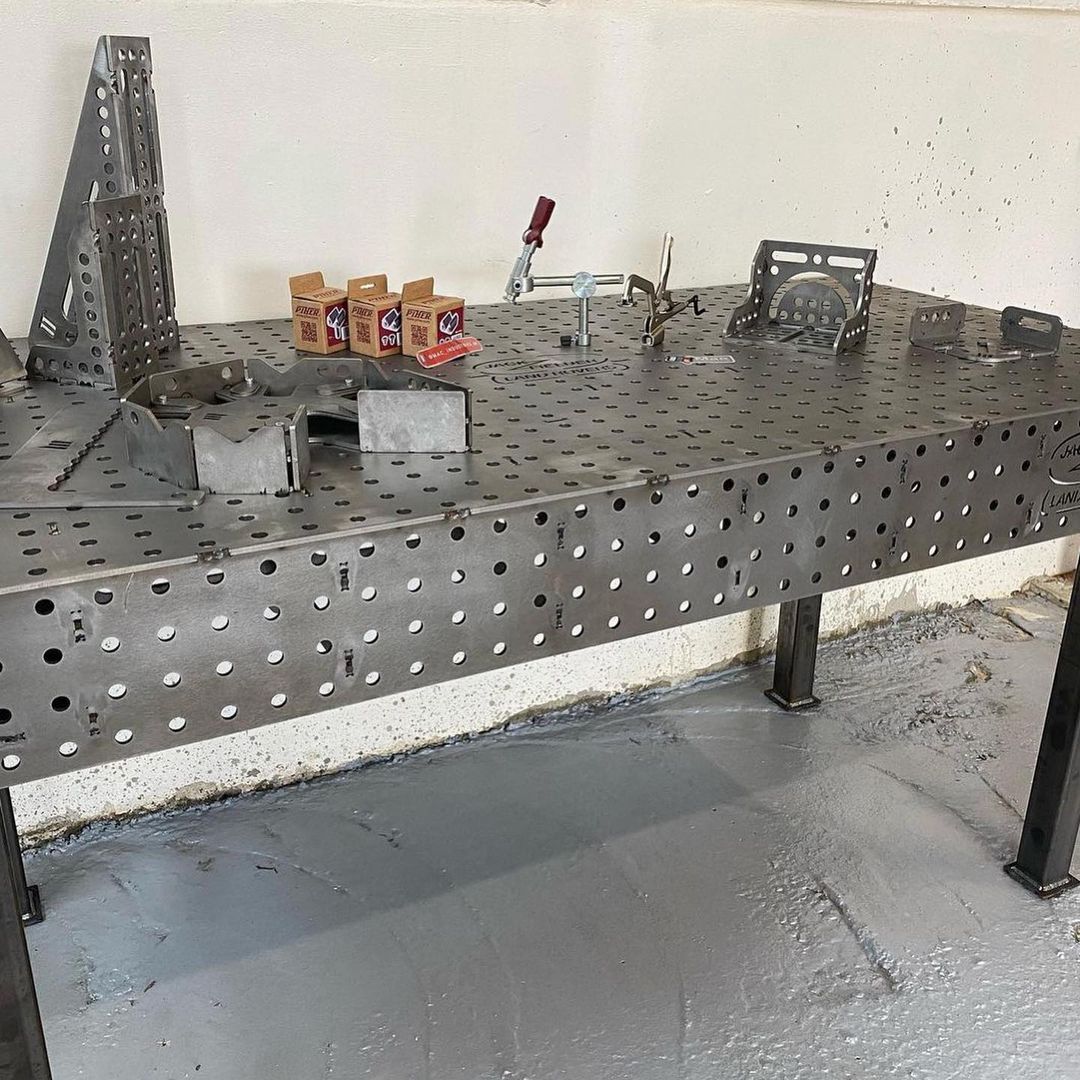

• Using our large range of welding table tooling, squares, stops, blocks and more, you can adapt the size and shape of your welding fixture table to suit your fabrication needs.

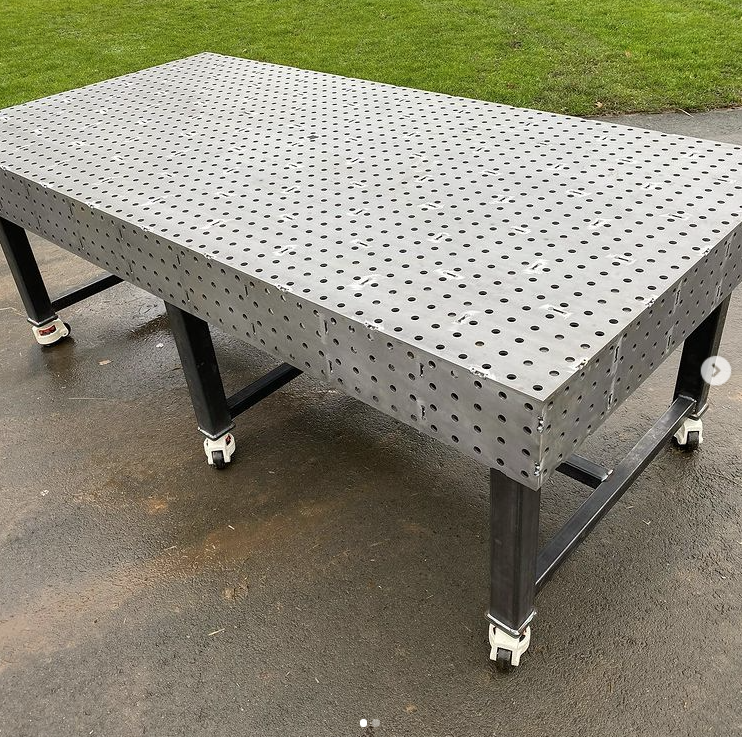

• Option: Footmaster Castors 80F 250kg per castor – Height adjustable
• Design, Manufactured in the UK

PRO Build Options

Self-Weld: Delivered flat packed for yourself to assemble and weld up (See our assembly page for more info).

Self-Weld + Leg Kit: Delivered flat packed including leg steels (70x70 legs, 50x50 bracing*If requested) and mounting plates for yourself to assemble and weld up. (Does not included fixings & Customer to advise top of table height, See our assembly page for more info).

Self-Weld + Leg Kit + Castors: Delivered flat packed including leg steels (70x70 legs, 50x50 bracing if requested) mounting plates, Castors for yourself to assemble and weld up. (Does not included fixings & Customer to advise top of table height during checkout, See our assembly page for more info).

Ready Made: We assemble, weld, and quality-check your item—so when you receive your table, it’s ready for you to start fabricating something awesome.

Ready Made + Leg Kit: As above but we will cut, assemble and weld your leg kit along with your tabletop. You will receive your table fully welded (legs will require fitment). (Customer to advise top of table height during checkout)

Ready Made + Leg Kit + Castors: As above but we will cut, assemble and weld your leg kit. You will receive your table fully welded (legs and castors will require fitment) (Customer to advise top of table height during checkout).

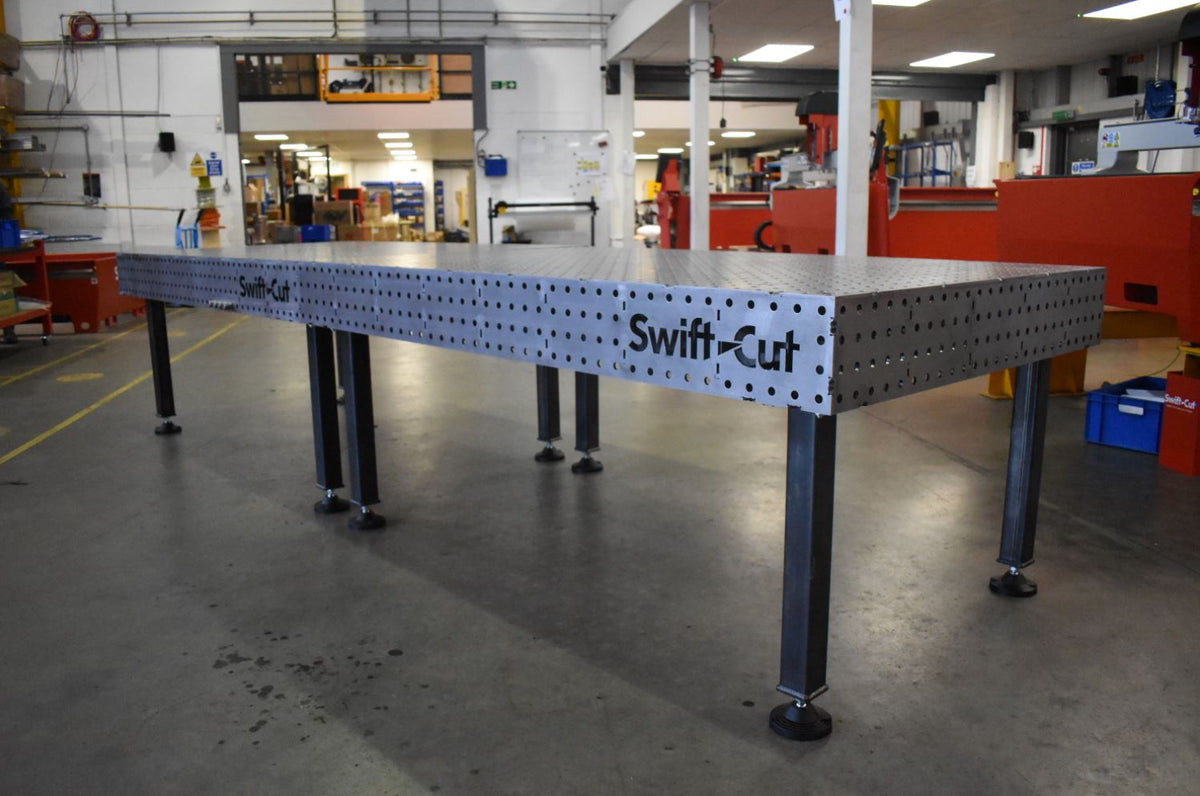

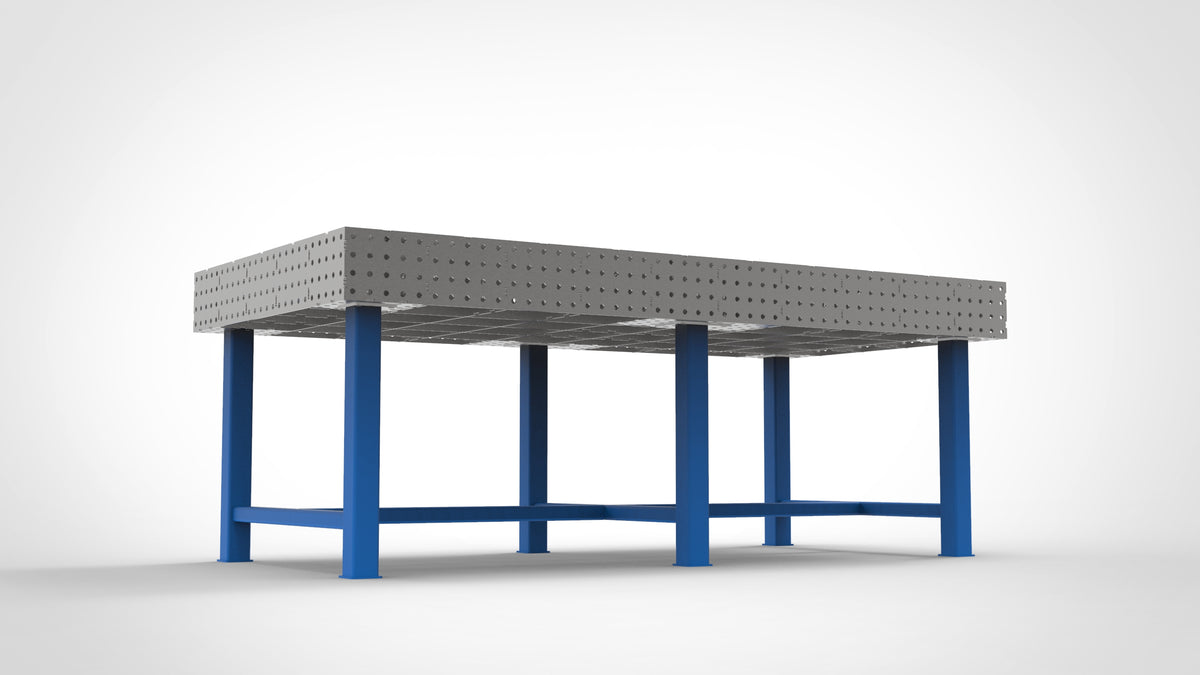

PRO TABLES sized 2.5x1.25m and above are provided with 6x Legs and castors when selected.

Leg Kit Detail : 70x70x3 legs / 50x50x2 bracing when requested – Mild steel (NOT PAINTED)

(Customer to advise top of table height during checkout!)

Castors Detail: Foot master 80F/100F

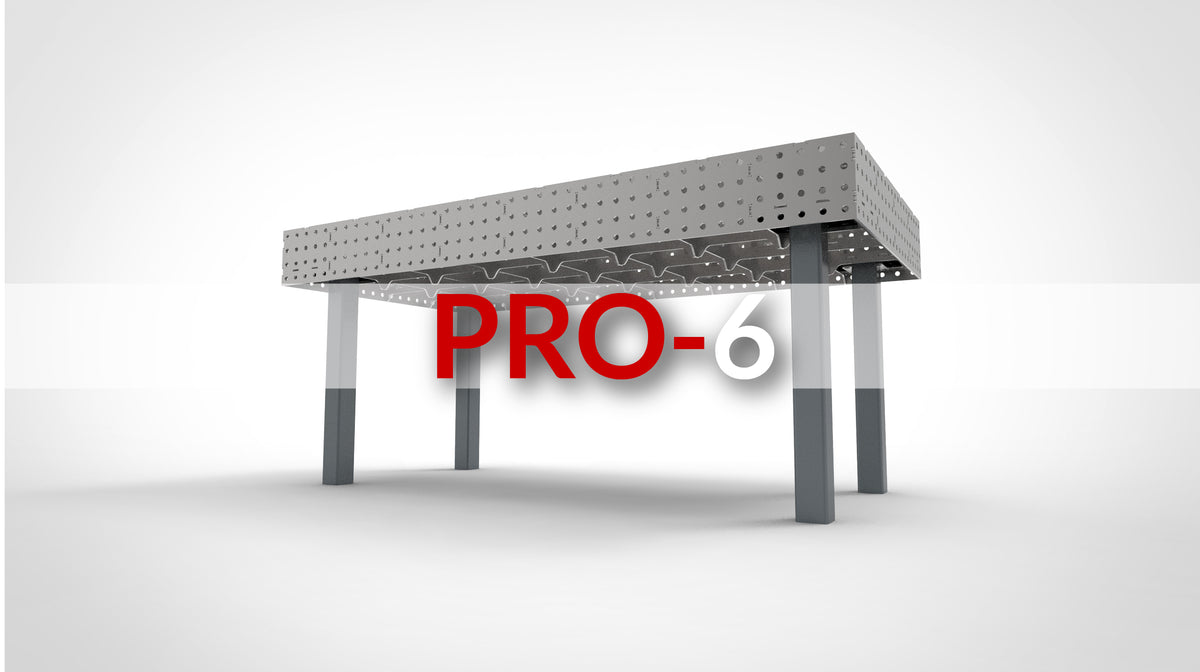

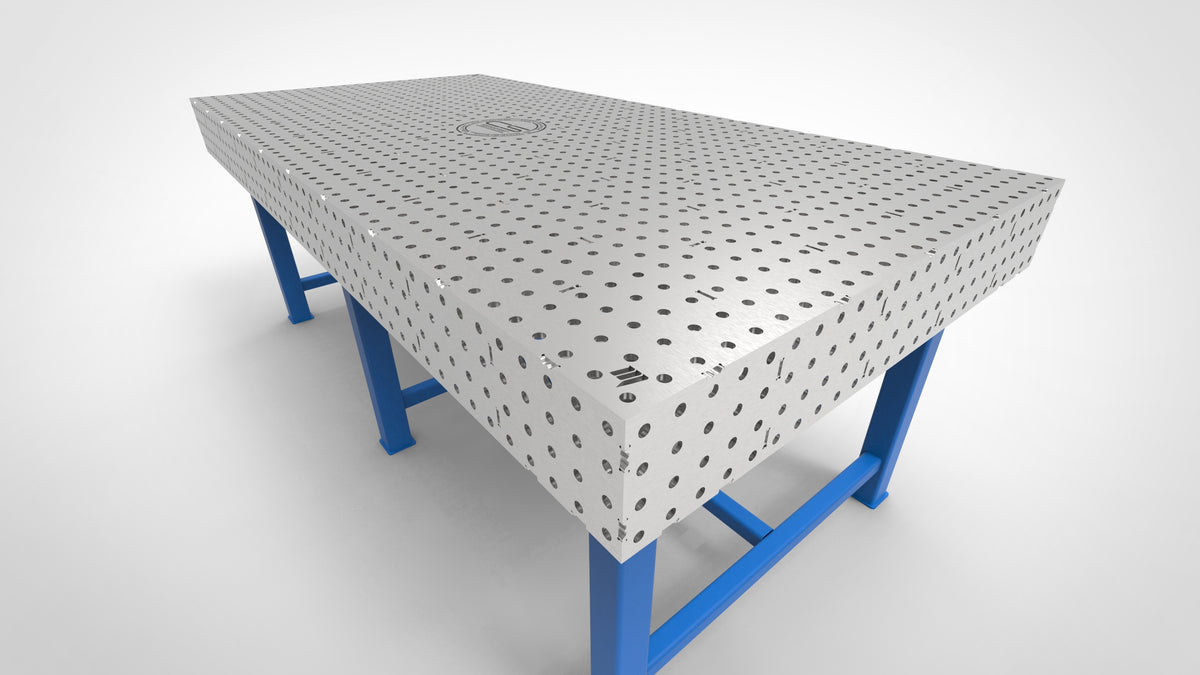

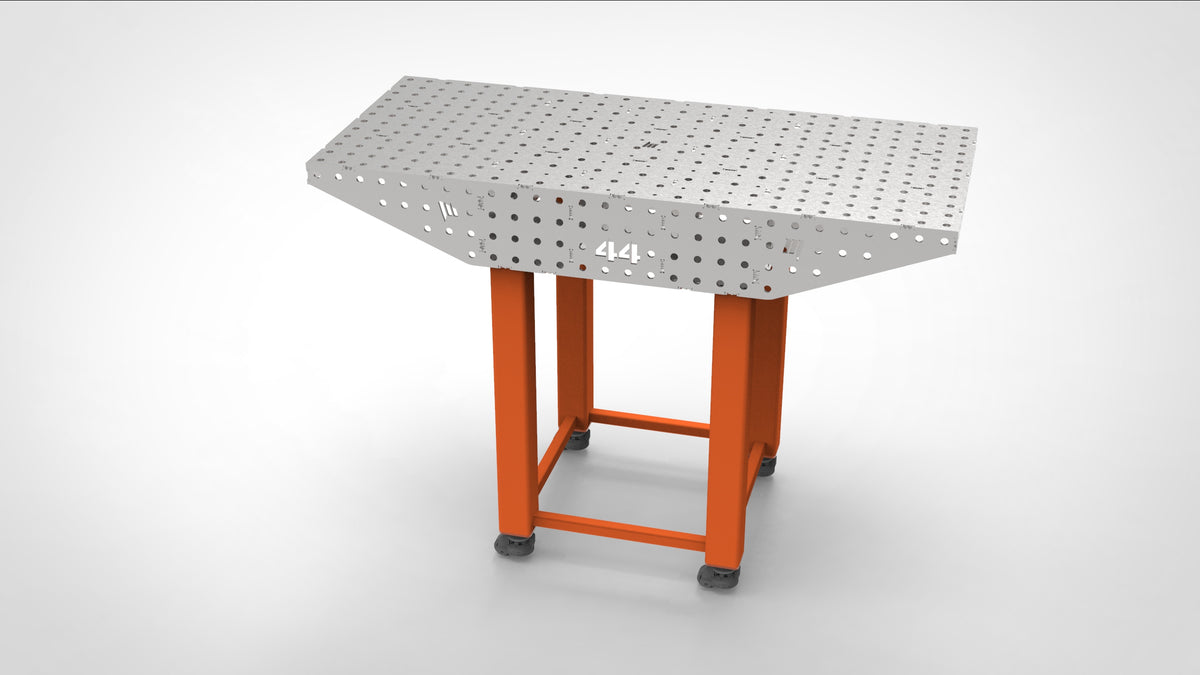

Please note some pictures shown are computer renders and final product may differ. 600x600 Leg Kit contains one level of 25x25mm cross brassing (render shows two levels)
