MidiPRO · 16D system

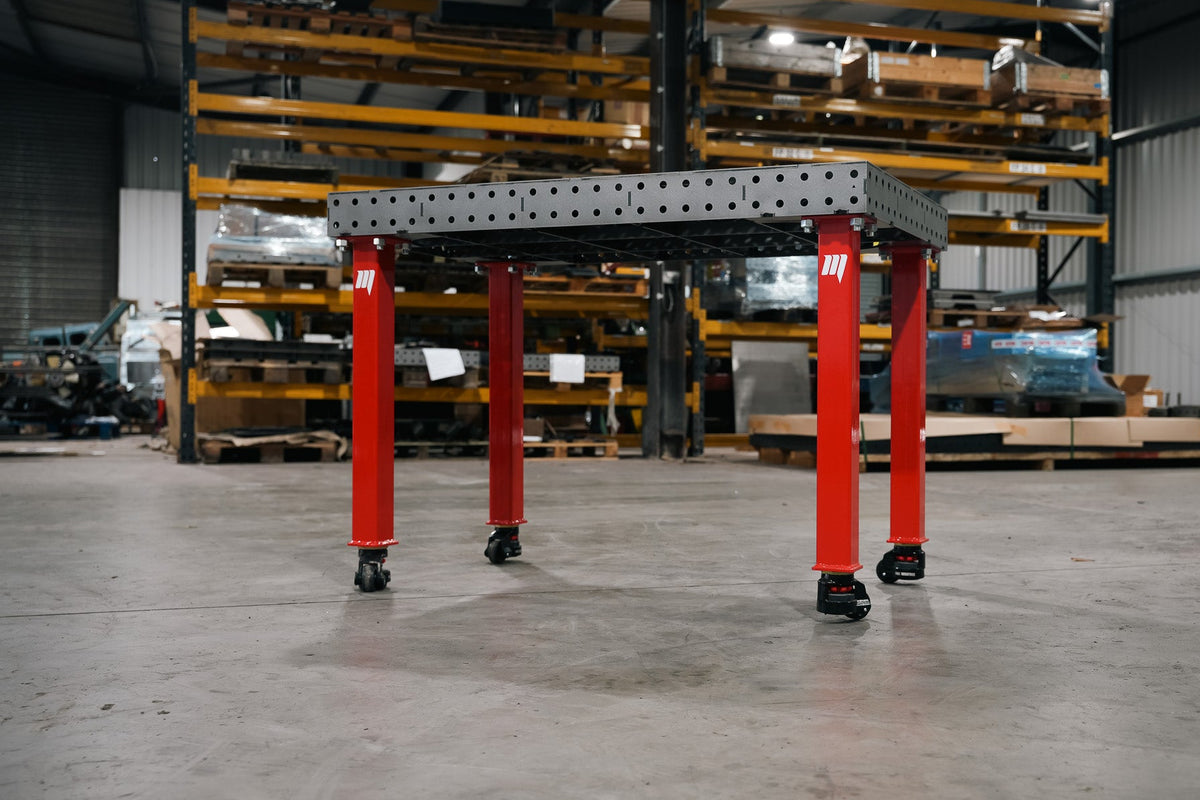

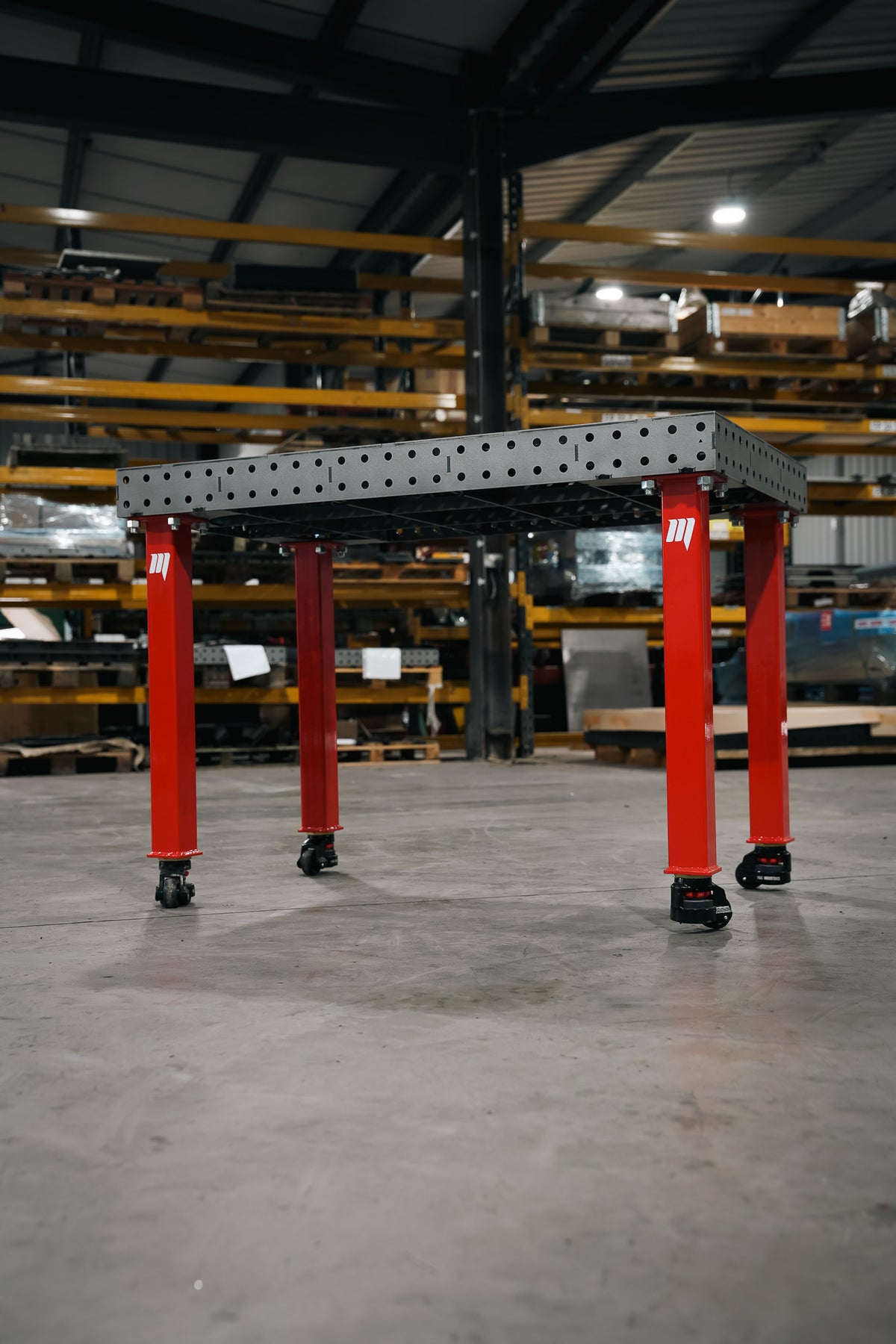

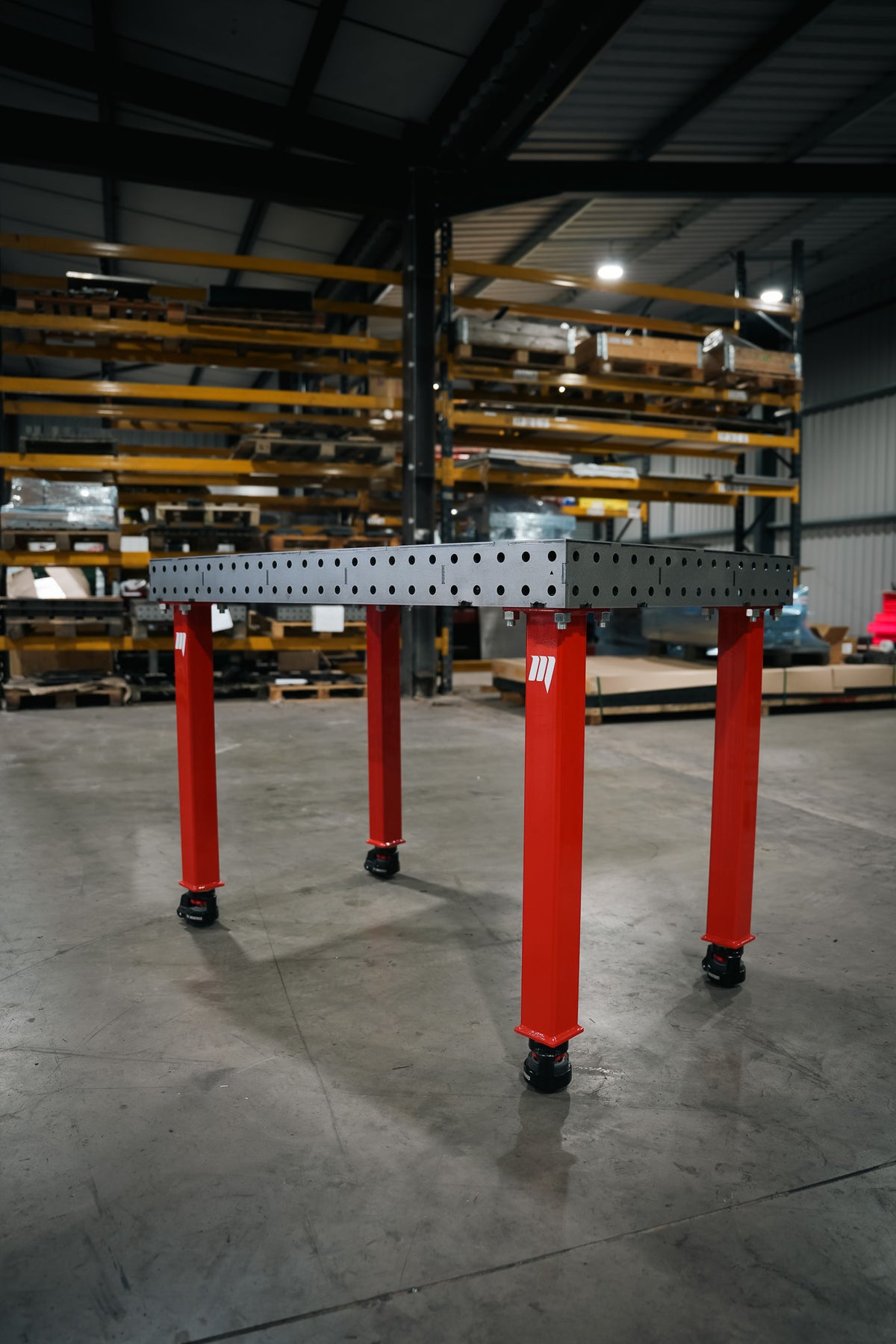

MidiPRO 1000×1000mm welding table – Self Weld, no legs
£721.54 inc VAT
Price for your choices below, from the table configurator. Free Clamp Hanger included.
- Top plate6mm steel
- Working area1000 × 1000mm
- Hole system16D (16mm holes)
- BuildSelf Weld Kit
- LegsNone (top only)
- Free giftClamp Hanger 400mm
Need a formal quote for your business? Use "Customise this table" and choose Request a Quote.
Overview

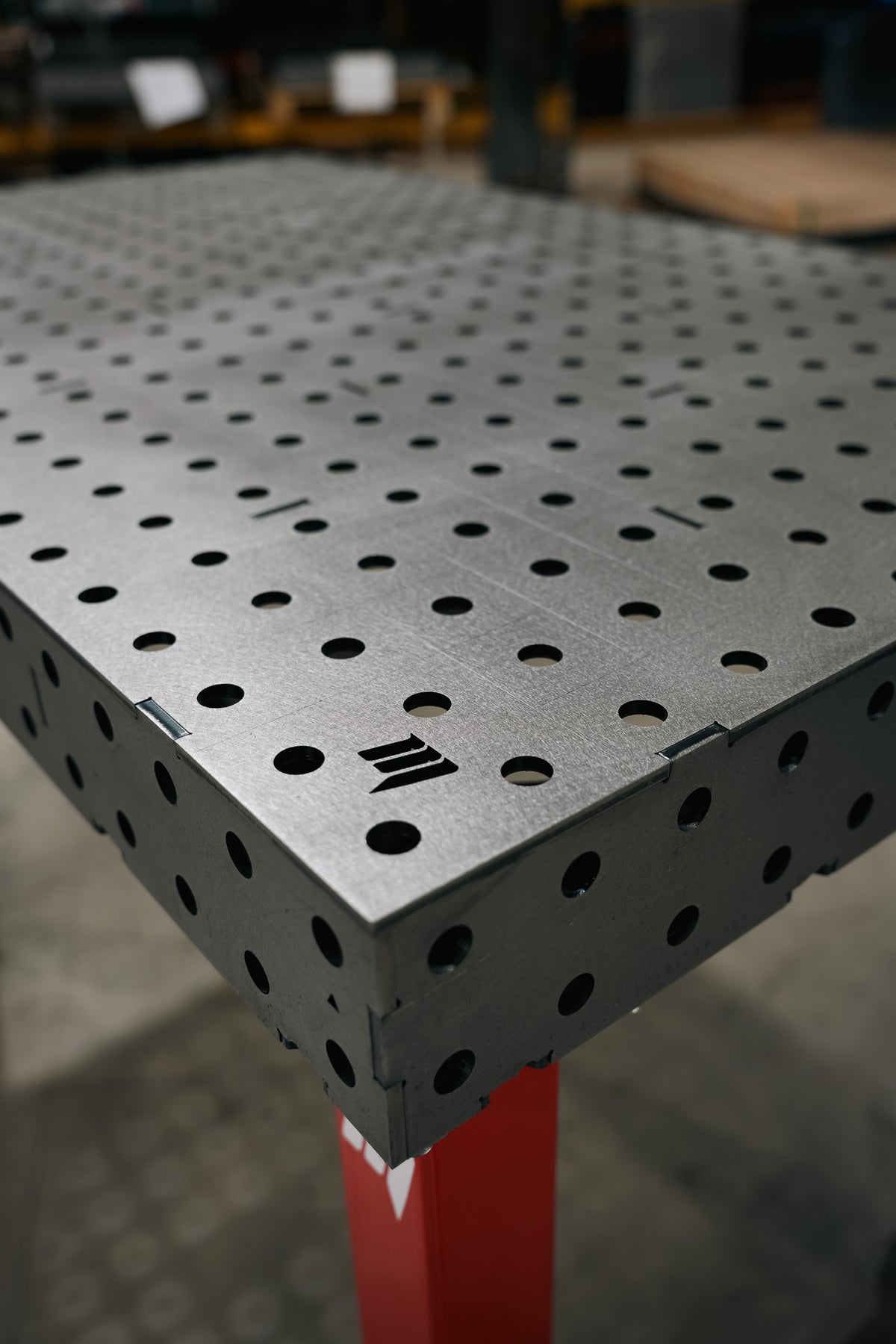

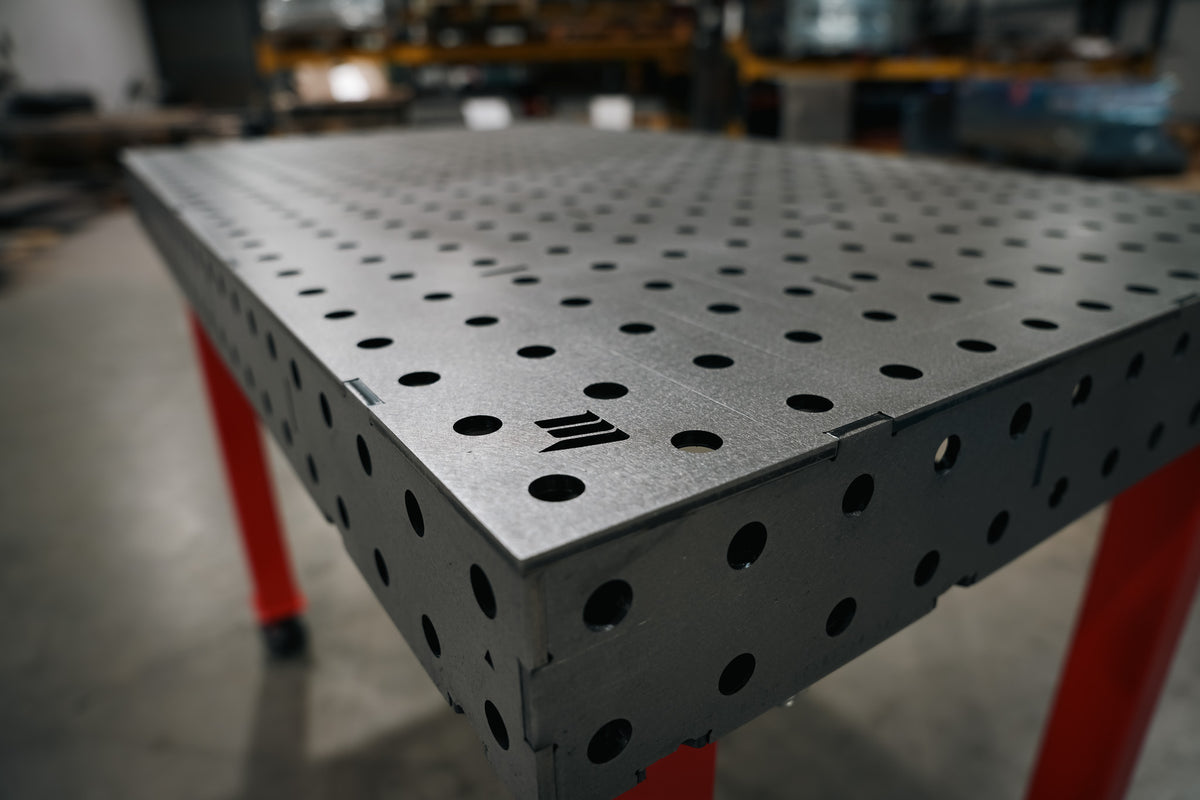

Our PRO 6 tables are the ultimate professional modular welding table fixture system, designed in house using the tab and slot locking interface. All PRO tables have a 200mm rib sub-frame offering maximum strength and accuracy. The PRO 6 has a 6mm top plate; for thicker material see our PRO 8 and PRO 10 ranges.
Unlike other imports and cheaper constructions, we design superior sub-frame cross bracing, as this is the most critical part of the fixture table to ensure a truly flat and accurate fabrication surface. We only use hot rolled, pickled and oiled S275 structural mild steel.
- 6mm top plate
- 200mm fixture skirt/sides with 16mm holes at 50mm centres (4 holes deep)
- Engineered in house with our tab and slot interlock
- Super strong interlocking sub-frame every 4/5 holes spacing
- All sub-frame parts from 6mm thick S275 HRPO structural grade mild steel
- We are very proud to guarantee a tolerance of +/- 0.1mm on all our laser cutting
- 16D (16mm) holes only. Tapped holes are available as a custom order only
- Have a logo you'd like cut into the table? We will do that free of charge
Specifications
| Working area | 1000 × 1000mm |
|---|---|
| Plate thickness | 6mm top plate, 6mm sub-frame |
| Material | Hot rolled, pickled and oiled S275 structural mild steel |

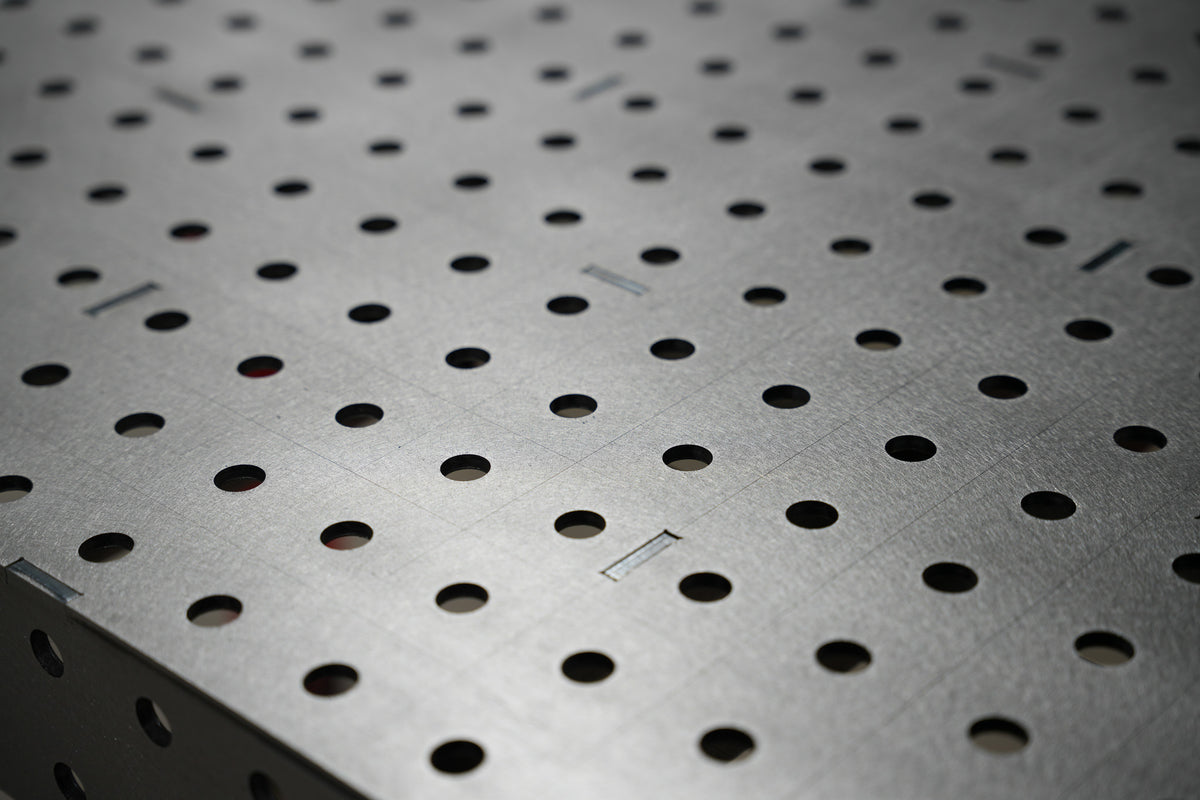

| Hole system | 16D: ø16mm holes on 50mm centres |
| Depth | 200mm skirt with 16mm holes, 4 holes deep |
| Height | 900mm working height as standard on feet or castors |
| Build | Self Weld Kit |

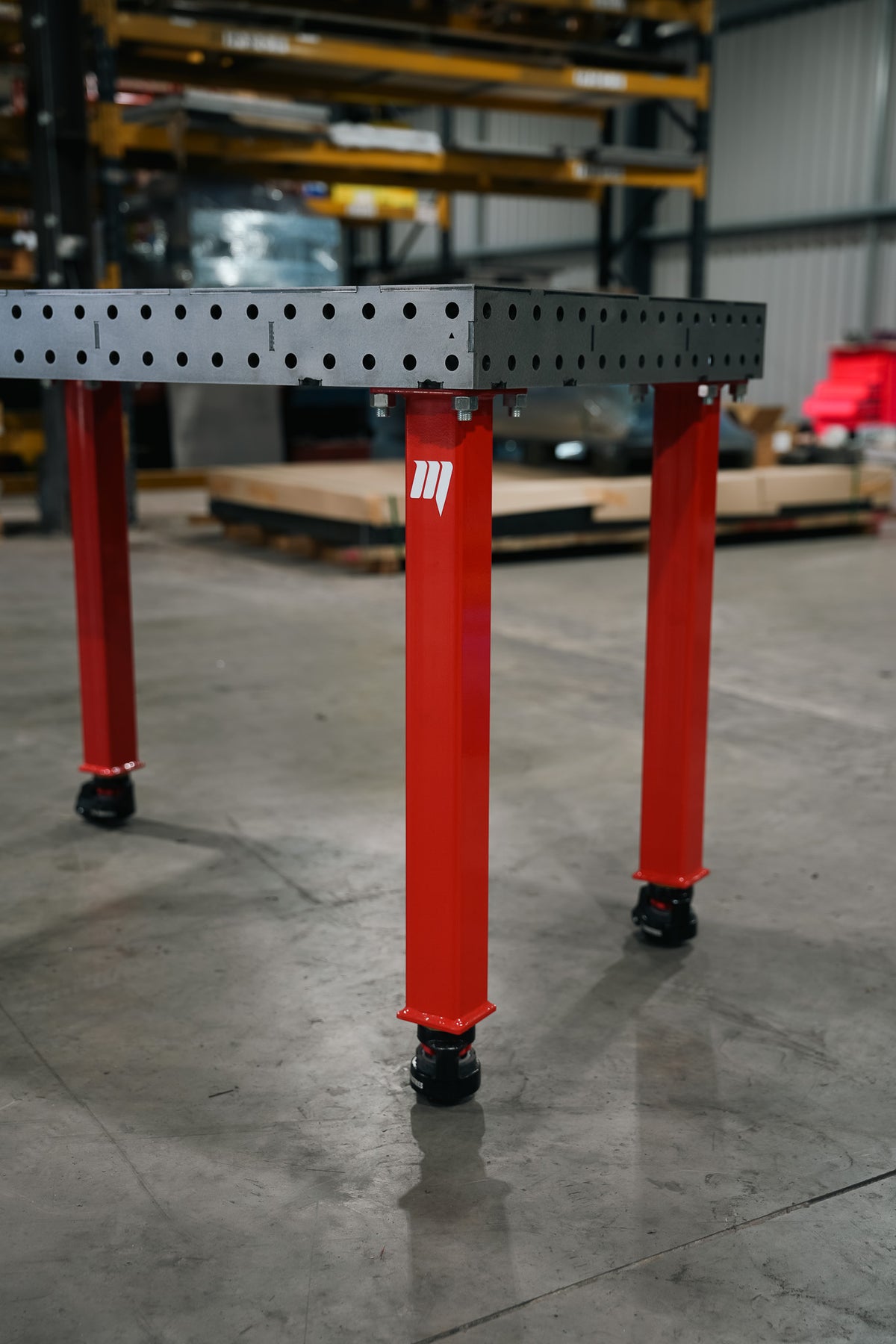

| Legs | 4 standard legs, adjustable feet |
| Leg section | 70 × 70 × 3mm mild steel |
| Castor option | FootMaster 80F, 250kg per castor, height adjustable |
| Finish | Raw (pickled and oiled) |
| Laser cutting tolerance | +/- 0.1mm |
What's included
- Self Weld Kit
- Assembly plates, free with a Self Weld Kit (9)
- Leg kit: 4 standard legs, adjustable feet
- Free Clamp Hanger 400mm
Drawings
The drawing redraws to the size you choose above. The full specification drawing is available as a PDF.
Technical drawings · every range
See exactly what you get
Pick a range and a size. The drawings redraw to the exact hole layout, depth and legs of that table, taken from our own spec drawings. Every dimension is in millimetres.
Drawings are generated from MAC SOLIDWORKS specification drawings (Sep 2026) and shown to proportion, not to scale. Working height is 900 mm as standard on feet or castors, and can be made to your preferred height on request. Leg positions follow the approved layout and are shown for illustration. For build-critical dimensions use the full spec PDF or call 01432 381 233.
Tooling kits
Kit out your table
Clamps, squares, stops and bolts from the MAC tooling range, matched to your table and added to your basket in one go.
Loading kits…
Delivery & FAQs
How is my table delivered?
A lot of our items are rather heavy and will be sent on a pallet. The service required for your order is worked out during checkout depending on the weight of the complete order.
As standard the pallet service is provided with a tail lift at delivery so your order can be unloaded by the driver. Please note this is a kerbside service.
What does Self Weld mean?
Self Weld tables are delivered flat packed for you to assemble and weld up. See our assembly page for more info.
What does Ready Made mean?
We assemble, weld and quality check your table, so when you receive it, it's ready for you to start fabricating something awesome.
Can I have tapped holes?
Tapped holes are available as a custom order only. Contact us for a quotation.
Do you make other sizes?
If you can't find the size or product you're after, please get in touch, as we offer bespoke sizes and designs to suit your requirements.
Need a formal quote for your business?
Buying for a company, school or workshop? Add everything to your basket as normal, then choose Get a formal quote instead of going to checkout. MAC Industries confirms pricing, carriage and lead time, and you get a quote reference for your purchasing team. No payment is taken.
Any questions? Call 01432 381 233 or email [email protected].
Need parts laser cut?
The 6 kW Amada fibre laser that cuts our tables cuts customer parts too. Sheets up to 3000 × 1500 mm, mild steel up to 32 mm, made in Shobdon.
