ULTRA 15 · 16D system

ULTRA 15 1400×1400mm welding table – Ready Made, legs with castors

£3,694.74 inc VAT

Price for your choices below, from the table configurator. Free Clamp Hanger included.

  • Top plate15mm S355 steel
  • Working area1400 × 1400mm
  • Hole system16D (16mm holes)
  • BuildReady Made by Mac
  • LegsStandard legs, FM castors
  • Leg finishRaw, no paint
  • Free giftClamp Hanger 400mm

Need a formal quote for your business? Use "Customise this table" and choose Request a Quote.

Overview

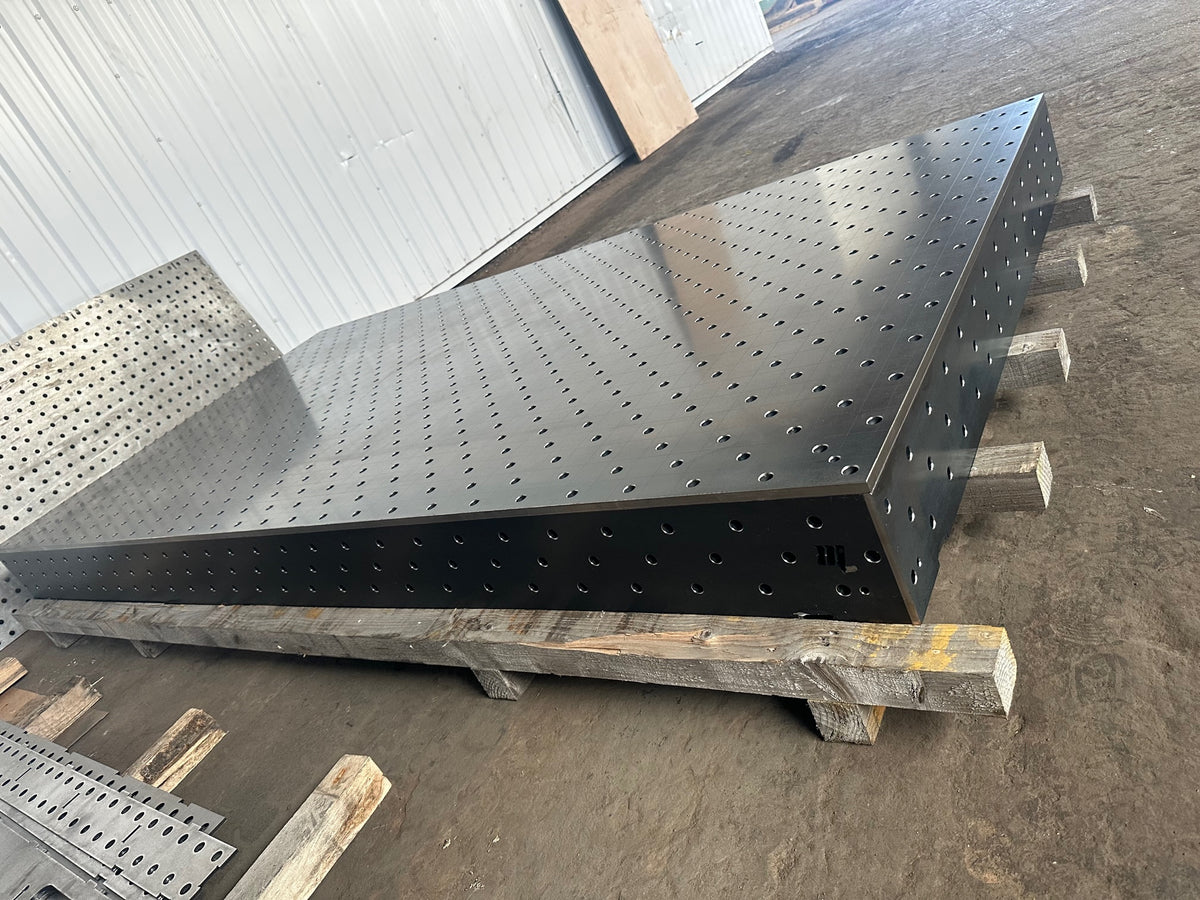

Our ULTRA 15 is the ultimate professional modular welding table fixture system, designed in house using the tab and slot locking interface and manufactured from high grade S355J2+N steel. All ULTRA tables have a 200mm deep rib sub-frame offering maximum strength and accuracy.

The ULTRA 15 has a 15mm top plate and 10mm sides with chamfered holes. Unlike other imports and cheaper constructions, we design superior sub-frame cross bracing, as this is the most critical part of the fixture table to ensure a truly flat and accurate fabrication surface. We design, test and manufacture everything in house in the UK.

  • High grade S355J2+N 15mm thick top, 10mm side skirts
  • 200mm fixture skirt/sides with 16mm holes at 50mm centres (4 holes deep)
  • 16D: 16mm holes on 50mm centres, to work with industry standard 16mm and 5/8" tools. 28D: 28mm holes on a 100mm diagonal grid

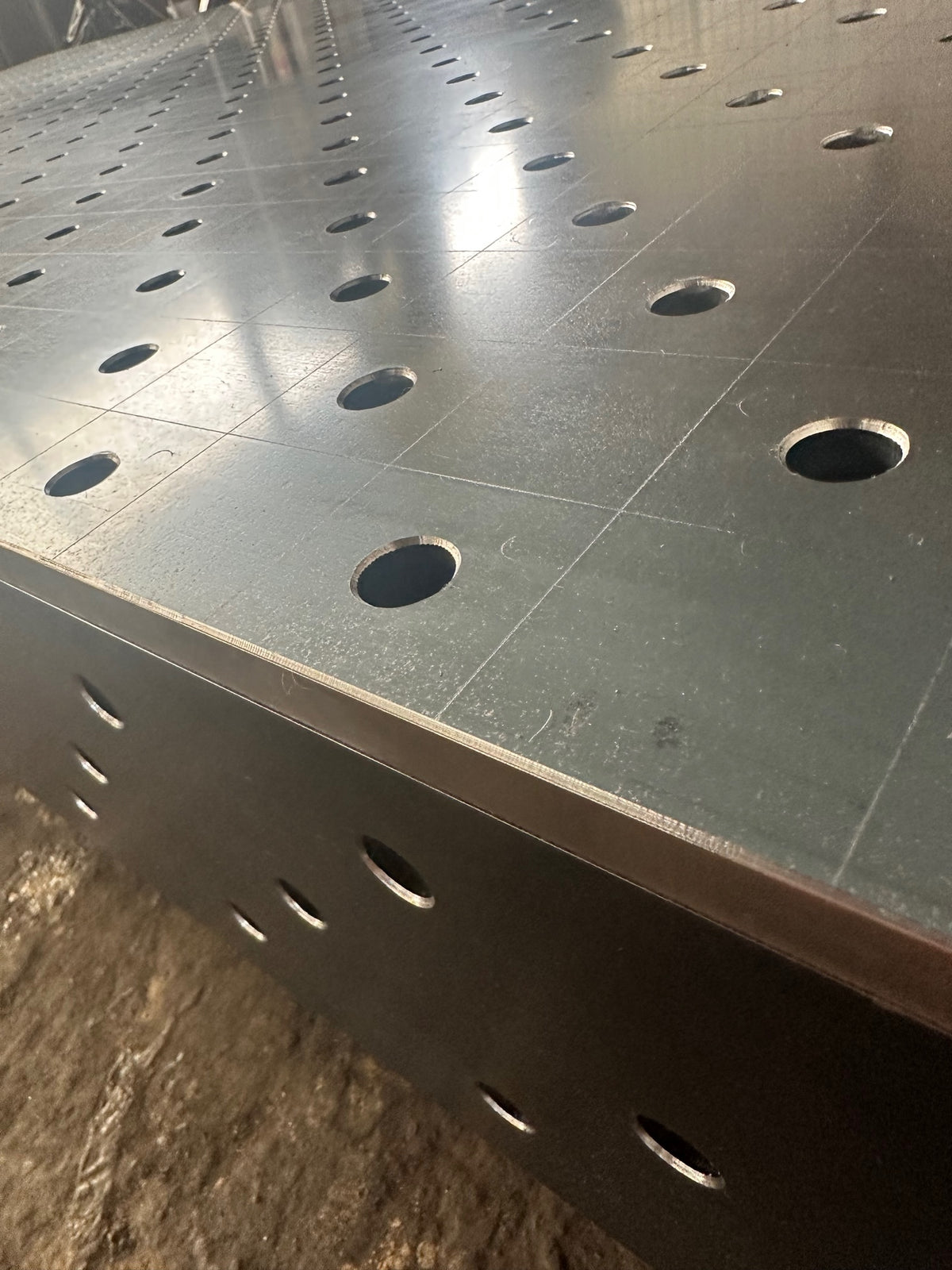

  • Chamfered and fibre laser cut holes for easy tool assembly
  • Etched scale in the grid
  • Super strong interlocking sub-frame every 4/5 holes spacing
  • Tables can be combined freely to extend a working surface
  • Made in Britain, made in Herefordshire, made in house

Specifications

Working area1400 × 1400mm
Plate thickness15mm top, 10mm side skirts
MaterialS355J2+N steel
Hole system16D: ø16mm holes on 50mm centres, chamfered
Depth200mm skirt with 16mm holes, 4 holes deep
HeightApprox. 880–930mm with standard legs (adjustable)
BuildReady Made by Mac
Legs4 standard legs, adjustable feet
Leg section100 × 100 × 3mm
Castor optionFootMaster 100S, 500kg per castor, height adjustable (move the table unladen)
Leg capacity850kg per leg (adjustable footplate, not FM castors)
Flatness±0.2mm
FinishRaw (pickled and oiled)
Laser cutting tolerance+/- 0.1mm

What's included

  • Ready Made by Mac
  • Leg kit: 4 standard legs, adjustable feet
  • Free Clamp Hanger 400mm

Drawings

The drawing redraws to the size you choose above. The full specification drawing is available as a PDF.

Technical drawings · every range

See exactly what you get

Pick a range and a size. The drawings redraw to the exact hole layout, depth and legs of that table, taken from our own spec drawings. Every dimension is in millimetres.

Drawings are generated from MAC SOLIDWORKS specification drawings (Sep 2026) and shown to proportion, not to scale. Working height is 900 mm as standard on feet or castors, and can be made to your preferred height on request. Leg positions follow the approved layout and are shown for illustration. For build-critical dimensions use the full spec PDF or call 01432 381 233.

Tooling kits

Kit out your table

Clamps, squares, stops and bolts from the MAC tooling range, matched to your table and added to your basket in one go.

Loading kits…

Delivery & FAQs

How is my table delivered?

A lot of our items are rather heavy and will be sent on a pallet. The service required for your order is worked out during checkout depending on the weight of the complete order.

As standard the pallet service is provided with a tail lift at delivery so your order can be unloaded by the driver. Please note this is a kerbside service.

What does Ready Made mean?

We assemble, weld and quality check your table, so when you receive it, it's ready for you to start fabricating something awesome.

Can I have tapped holes?

Tapped holes are available as a custom order only. Contact us for a quotation.

Do you make other sizes?

If you can't find the size or product you're after, please get in touch, as we offer bespoke sizes and designs to suit your requirements.

Need a formal quote for your business?

Buying for a company, school or workshop? Add everything to your basket as normal, then choose Get a formal quote instead of going to checkout. MAC Industries confirms pricing, carriage and lead time, and you get a quote reference for your purchasing team. No payment is taken.

Any questions? Call 01432 381 233 or email [email protected].
