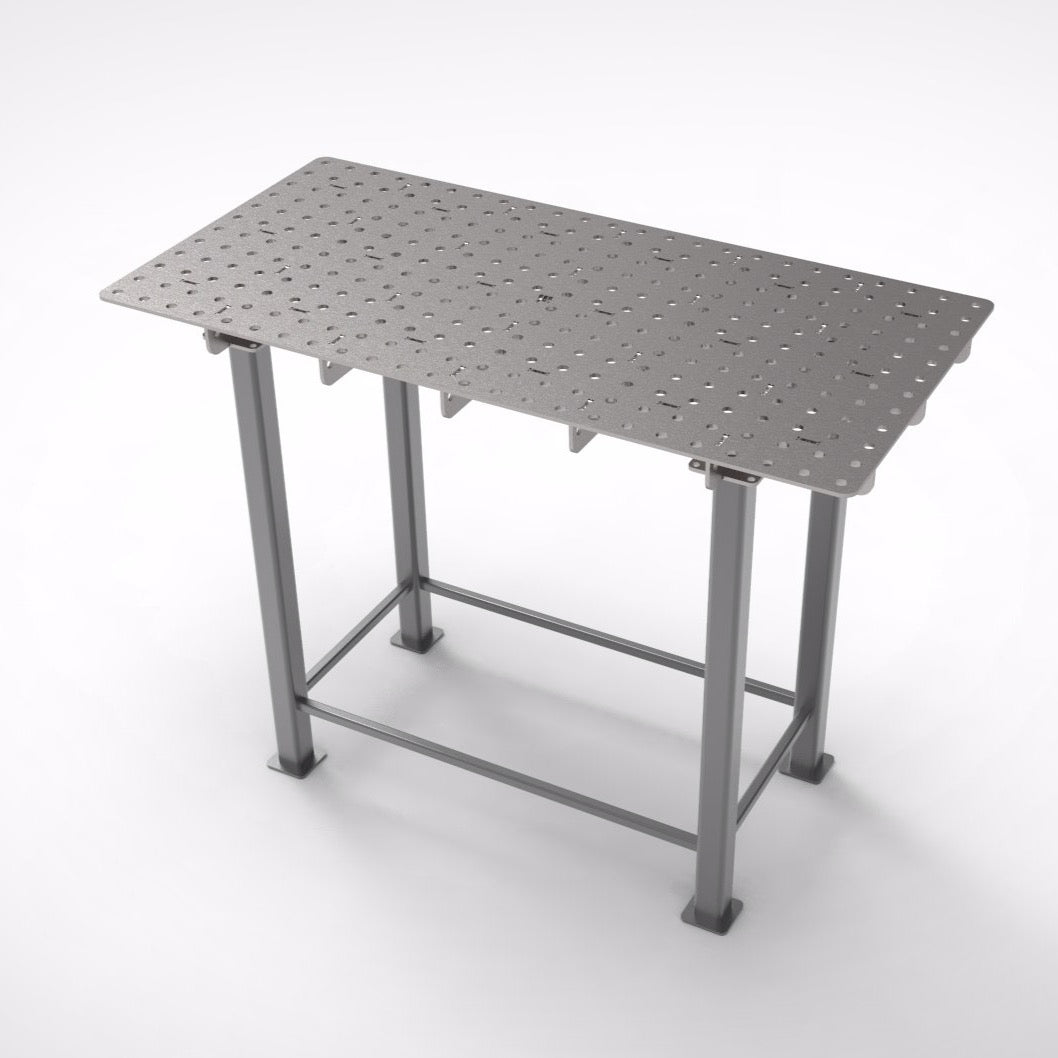

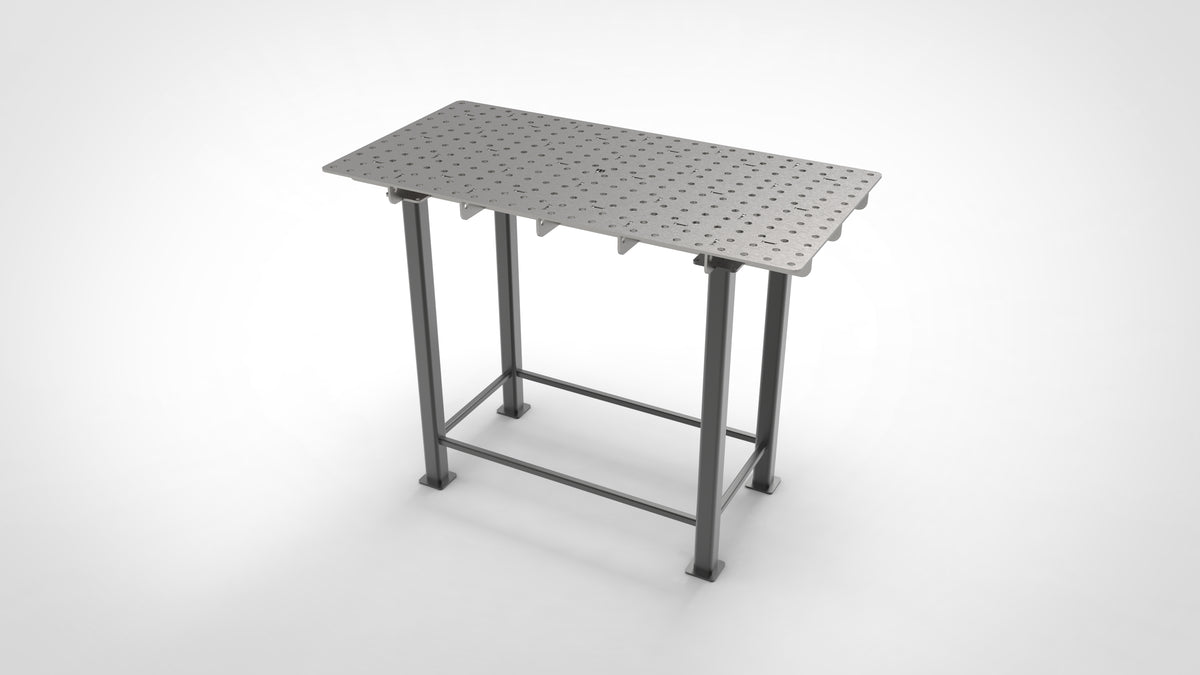

Hobby - Modular Fixture Welding Table Bench

Unlike other imports and cheap constructions we design superior sub-frame cross bracing as this is the most critical part of the fixture table to ensure a truly flat and accurate surface. We design, test and manufacture everything in house and the UK to maintain a high quality of control.

The Hobby has the industry standard 16mm hole pattern (50mm hole centres) this works with all industry fixture 16D tooling. Tapped holes are available as a custom order only.

We only use Hot Rolled, Pickled and Oiled S275 structural mild steel. What this means is just after the production the sheet steel is run through an acid bath (Pickling) to remove any impurities, rust and mill scale from the surfaces of the steel. This leaves the sheet raw and unprotected so a light coving of oil is used to protect it. Using HRPO is nicer for our fibre laser cutter as the laser doesn’t need to cut through mill scale and impurities which can eventually affect the accuracy of the laser cutter therefore using HPRO Steel gives you precision cut parts which in our opinion they looks more awesome than the dreaded mill scale.

Mac Industries Hobby Table Key Features:

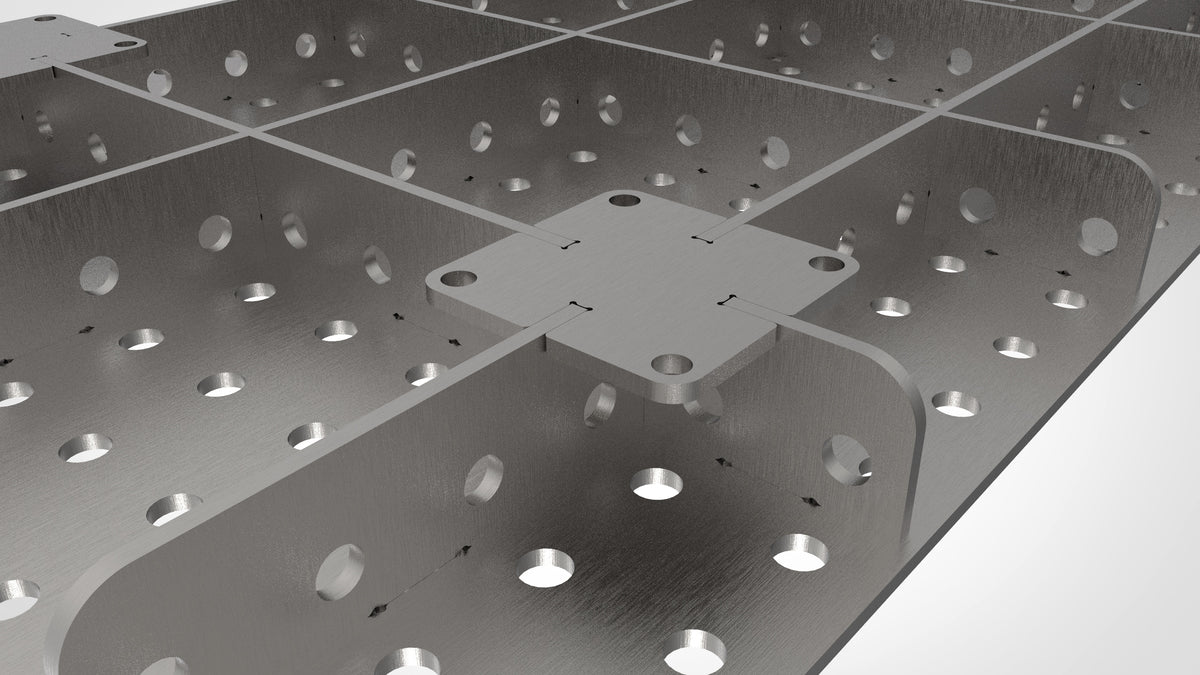

• Engineered in house with our Mac waved tab and slots interlock
• 16mm securing hole 50mm apart on centres to work with all 16mm tooling and tables

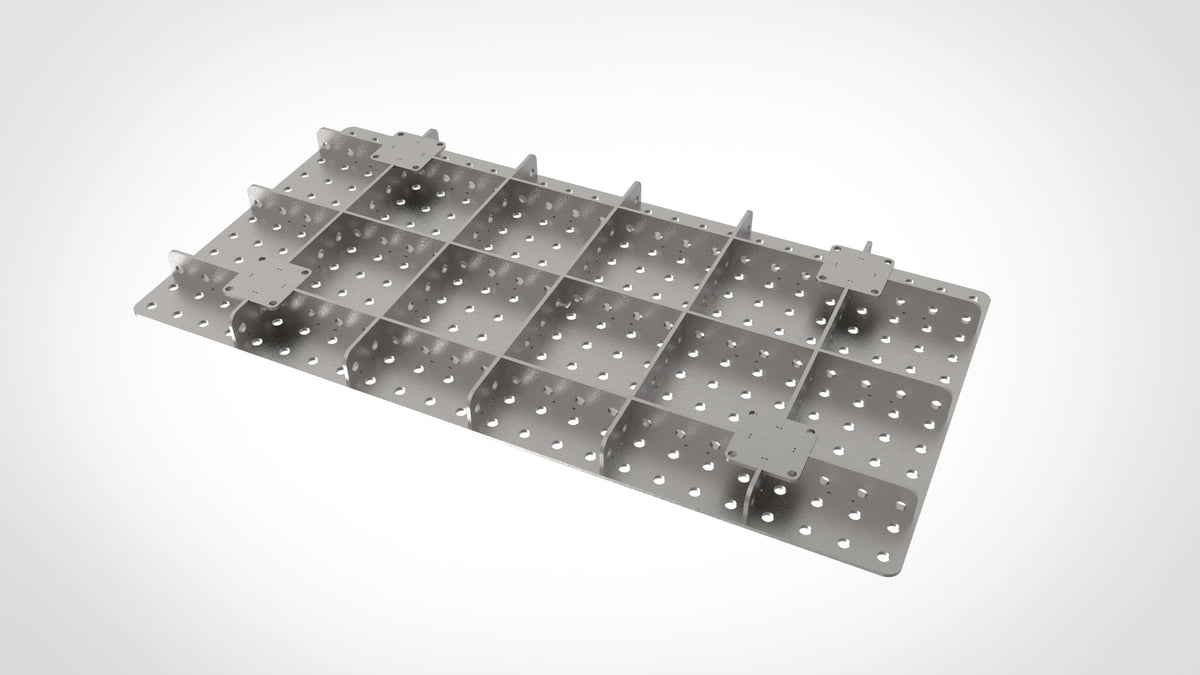

• Super strong Interlocking sub-frame every 4/5 holes spacing
• ALL parts from 6mm thick S275 HRPO structural grade mild steel
• We are very proud to guarantee a tolerance of +/- 0.1mm of all our laser cutting.
• 16mm holes on 50mm centres work with industry standard 16mm & 5/8" tools. 16D (16mm) holes only. Tapped holes are available as a custom order only.
• Using our large range of welding table tooling, squares, stops, blocks and more, you can adapt the size and shape of your welding fixture table to suit your fabrication needs.
• 100mm RED Castors 2no. Braked 2no. Un-braked 175kg each
• Design, Manufactured in the UK

Hobby Build Options

Self-Weld: Delivered flat packed for yourself to assemble and weld up (See our assembly page for more details).

Self-Weld + Leg Kit: Delivered flat packed including leg steels (50x50 legs, No Bracing) and mounting plates for yourself to assemble and weld up. (Does not included fixings & Customer to advise top of table height during checkout notes, See our assembly page for more details).

Self-Weld+ Leg Kit + 4x175kg 100mm Castors: Delivered flat packed including leg steels (50x50 legs, No Bracing)) mounting plates, Castors for yourself to assemble and weld up. (Does not included fixings & Customer to advise top of table height  during checkout notes, See our assembly page for more details).

Ready Made: We will assemble, weld and quality check your item. so soon receiving your table you can get fabricating something awesome!

Ready Made + Leg Kit: As above but we will cut your leg kit to your advised height and weld up your table top and leg kit. (Customer to advise top of table height during checkout notes)

Ready Made + Leg Kit + 4x175kg 100mm Castors: As above but we will cut your leg kit to your advised height and weld up your table top. You will receive your table assembled with the leg kit to be weld by yourself and castors to bolt on(Customer to advise top of table height during checkout notes).

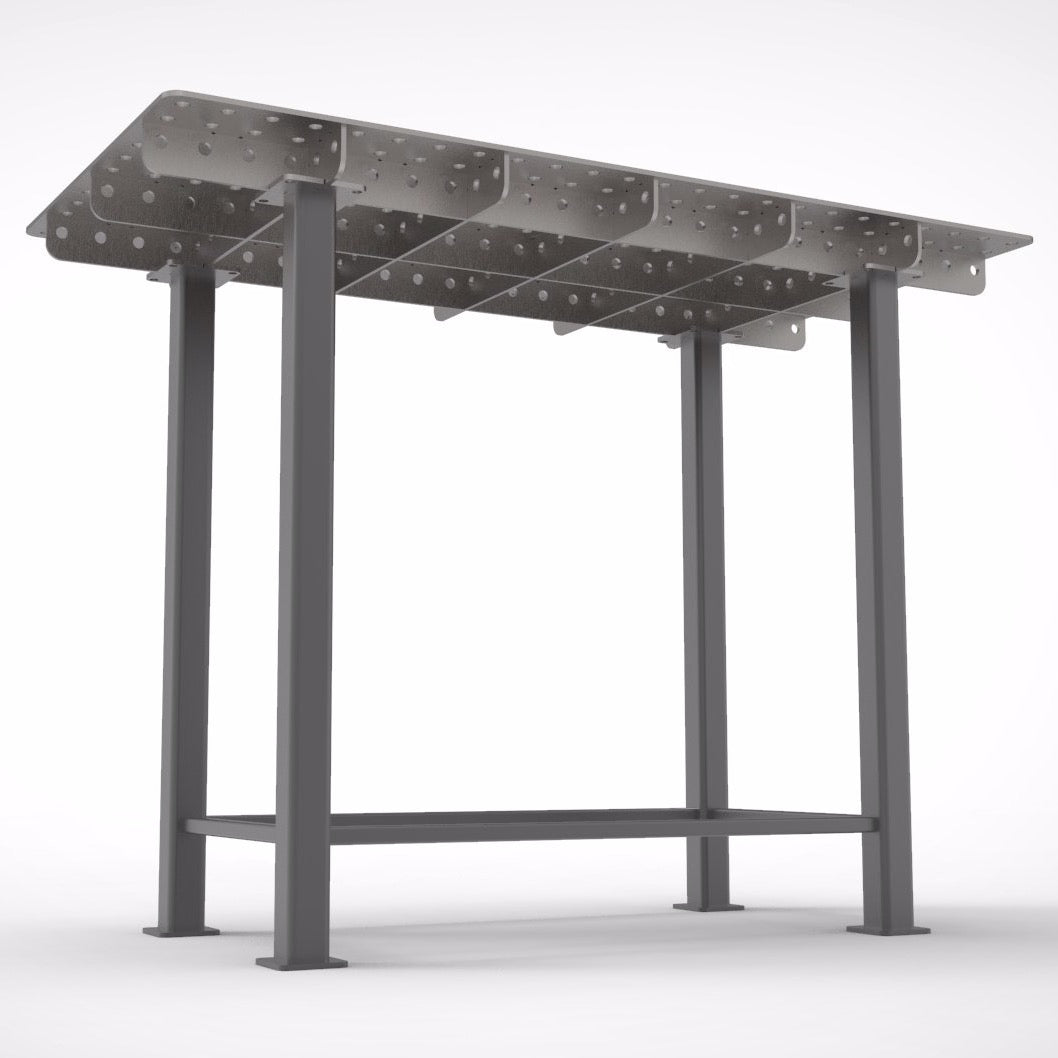

Leg Kit Detail : 50x50 legs / No bracing – Mild steel (Customer to advise top of table height during checkout)

Castors Detail:  175kg RED 100mm castors (2no. Braked, 2no. un-braked) 700kg total

Lead Time: We try to keep a stock off all our tables of all various sizes but depending on sales, workshop load and table requirements lead time can be between 5-14 days. Please get in touch for more accurate ETA.
