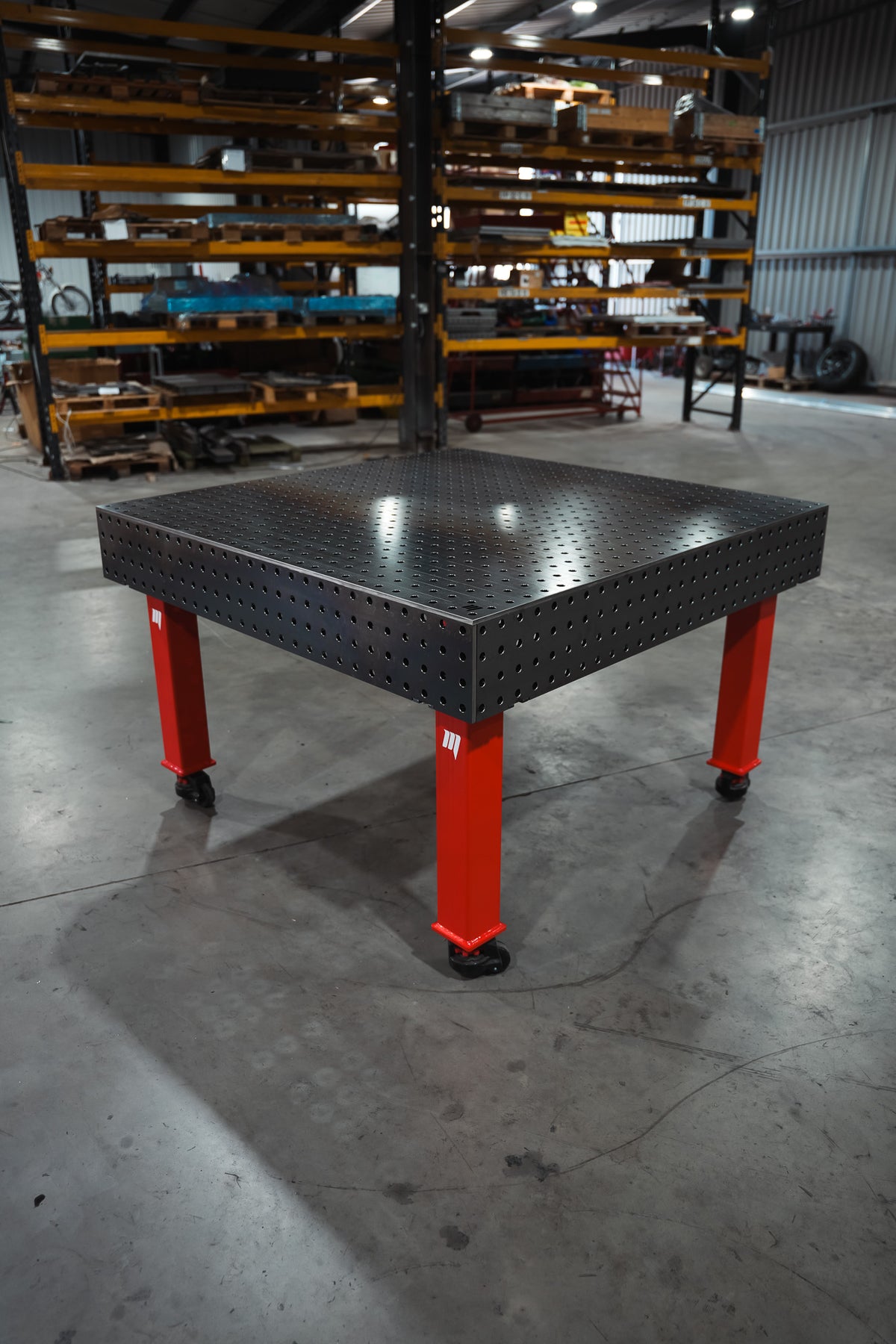

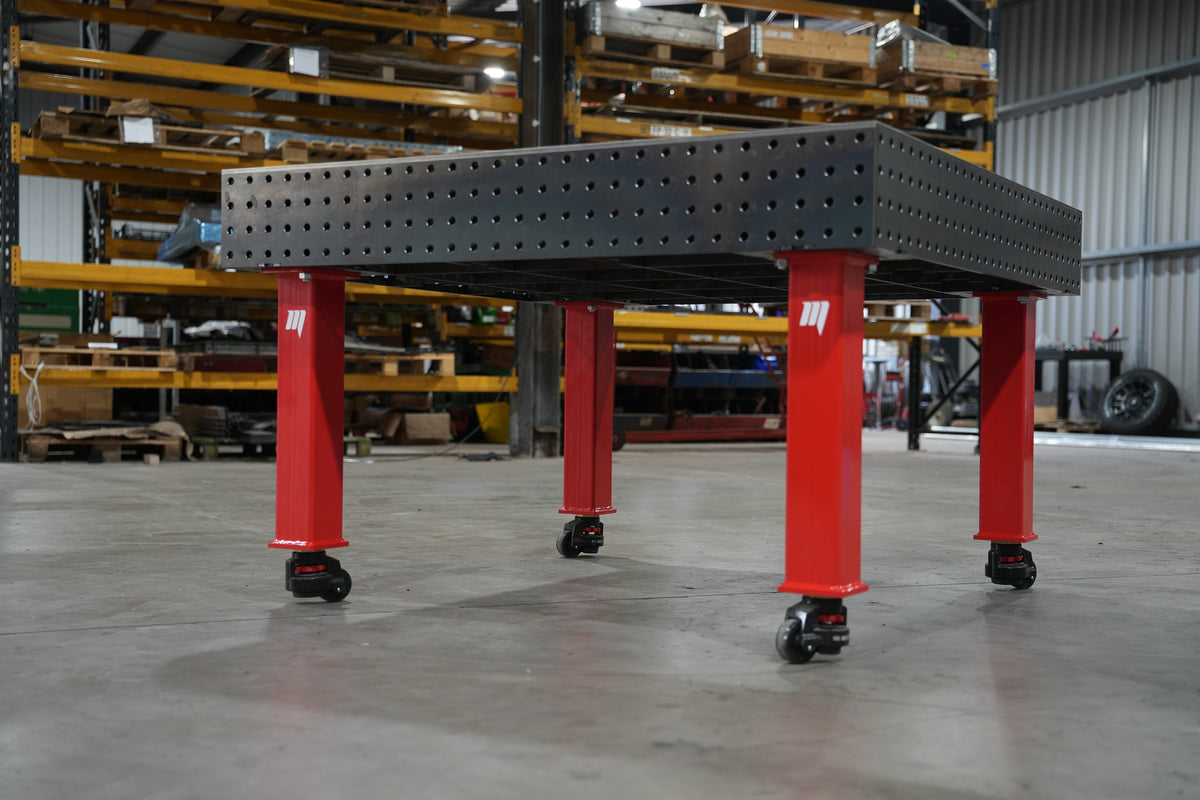

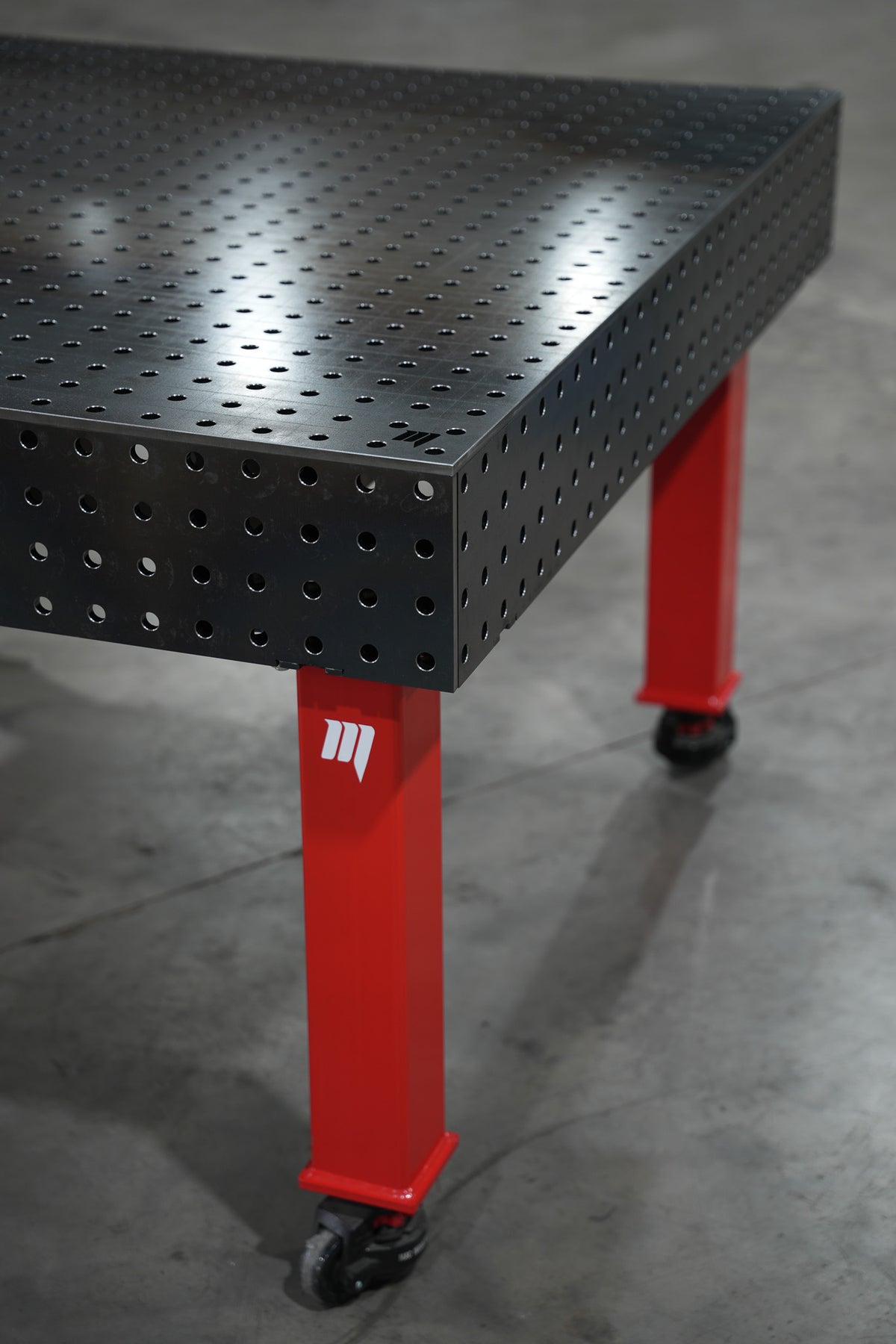

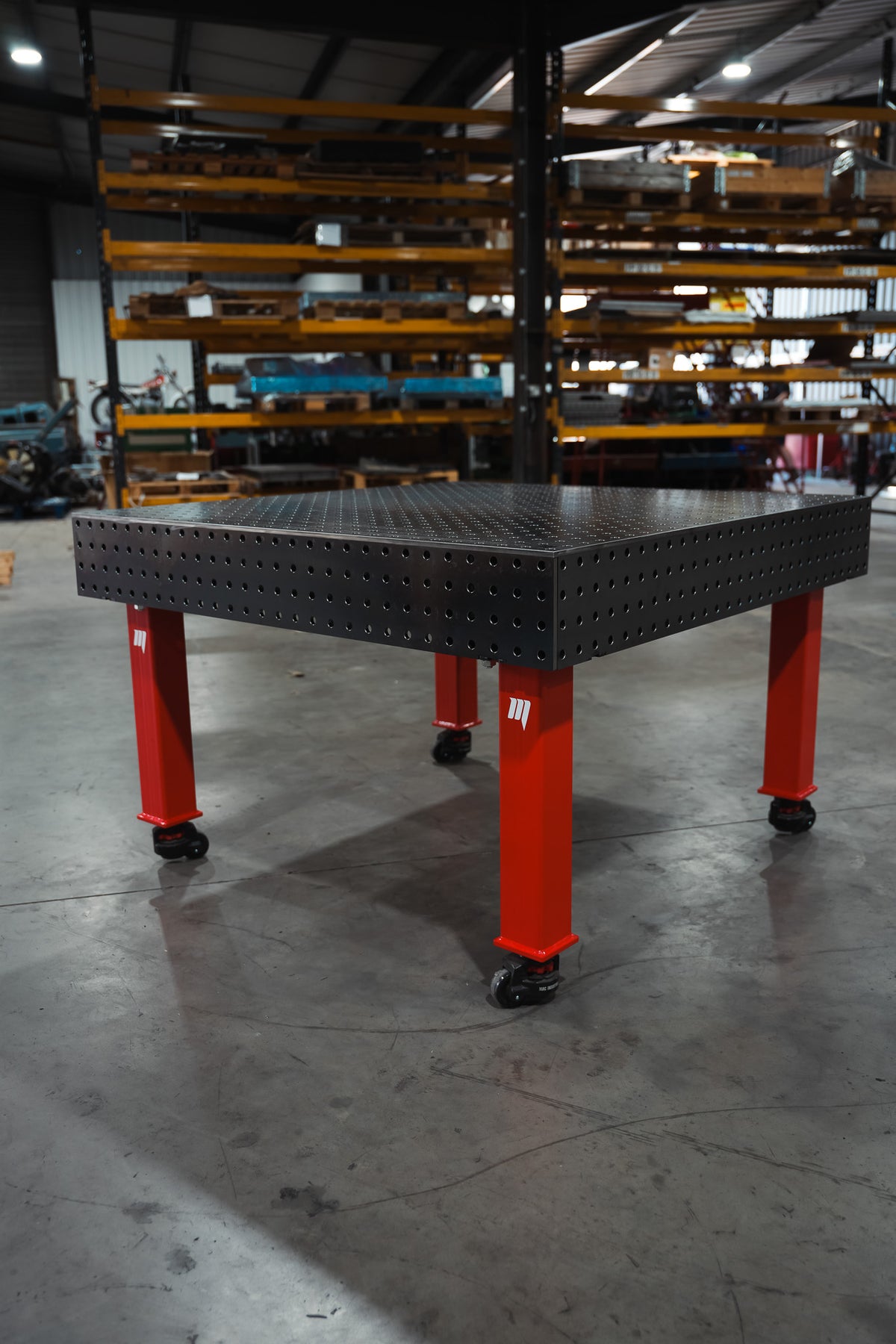

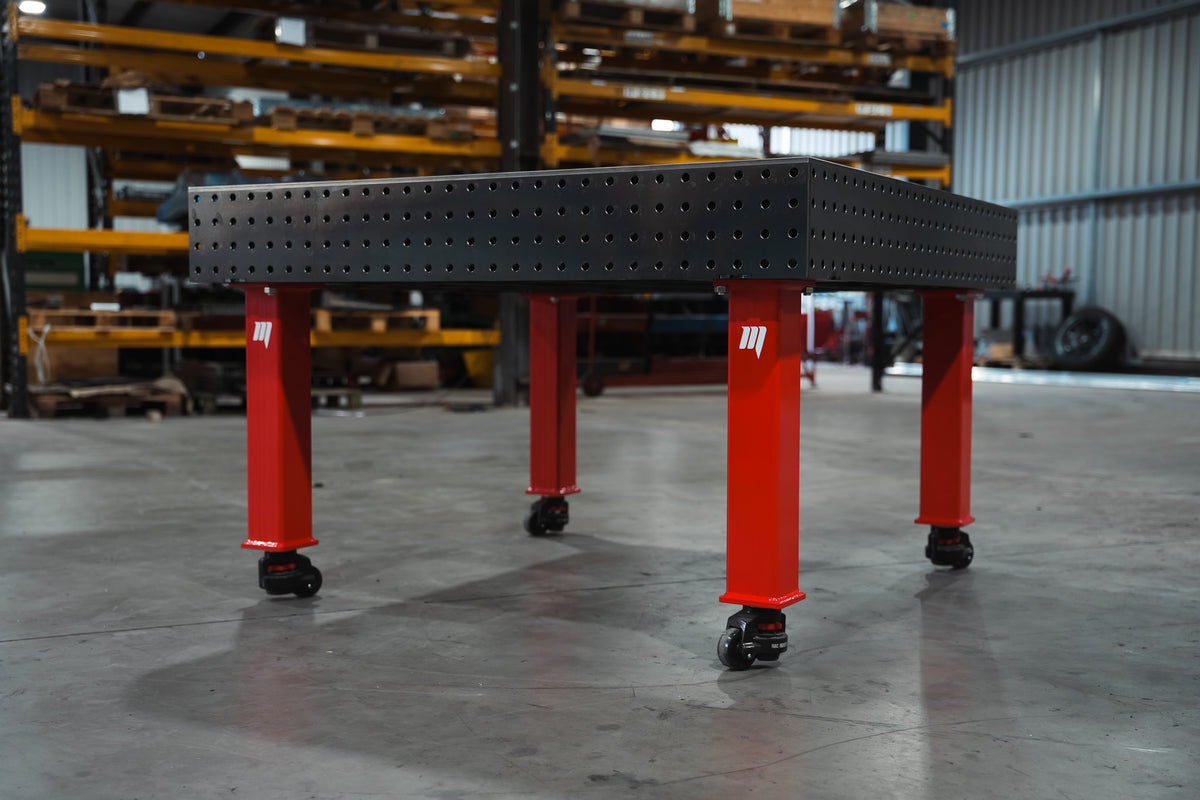

MAC ULTRA 10 Welding Fixture Table, 10mm S355 Top, 16D or 28D Holes, 1.4m x 1.4m to 2.8m x 1.4m

MAC INDUSTRIES - We manufacture all our Tables In-House on our extremely powerful and highly accurate 6kW Amada Fibre Laser with precision of ± 0.1mm., All tables are de-burred and dressed. Any questions, don't hesitate to call us as we are the manufacturers, designers, welders all under one roof.

 Don't waste your time with inferior imitation of MAC

Made In Britain  > Made In Herefordshire > Made In House

ULTRA10 is our 2022 Best Selling Heavy Duty Table! Providing Dyson, Ocardo, Ginetta, Bentley Racing, Clayton Engineeing plus many more!

Our ULTRA10  are the ultimate professional modular welding table fixture system. These tables are designed inhouse using the tab and slot locking interface. Manufactured from high grade S355J2+N  All ULTRA tables have a 200mm deep rib sub-frame offering maximum strength and accuracy. The ULTRA10 is supplied with a material thickness of 10mm of the top plates and 10mm sides with chamfer holes.

Unlike other imports and cheaper constructions, we design superior sub-frame cross bracing as this is the most critical part of the fixture table to ensure a truly flat and accurate fabrication surface. We design, test and manufacture everything in house and the UK to maintain a high quality of control.

ULTRA tables are available as 16D, with the industry standard 16mm hole pattern (50mm hole centres) to work with all industry fixture 16D tooling, or as 28D, with 28mm holes on a 100mm diagonal grid.

If you can't find the size or product you're after, please get in touch as we offer bespoke sizes and designs to suit your requirements. Contact Us

We can also offer our tables with either full thread tapped top  or half 16mm and half thread tapped. These holes can either be tapped by us or we can laser the holes for yourself to tap. Contact us for a quotation.

Mac Industries ULTRA Table Key Features:

• ULTRA10 High Grade S355J2+N 10mm Thick Top 10mm Side skirts.
• 200mm fixture skirt/sides with 16mm holes at 50mm centres (4x holes deep)
• Made in Britain & Made In House
• 16mm securing hole 50mm apart on centres to work with all 16mm tooling and tables
• Super strong Interlocking sub-frame every 4/5 holes spacing
• 16D: 16mm holes on 50mm centres, to work with industry standard 16mm & 5/8" tools. 28D: 28mm holes on a 100mm diagonal grid. Optional threaded holes and other holes sizes available.
• Using our large range of welding table tooling, squares, stops, blocks and more, you can adapt the size and shape of your welding fixture table to suit your fabrication needs.
• Option: Footmaster Castors 100S 500KG per castor – Height adjustable
• Design, Manufactured in the UK
• Red powder-coated legs as standard (Other RAL code colour options available).

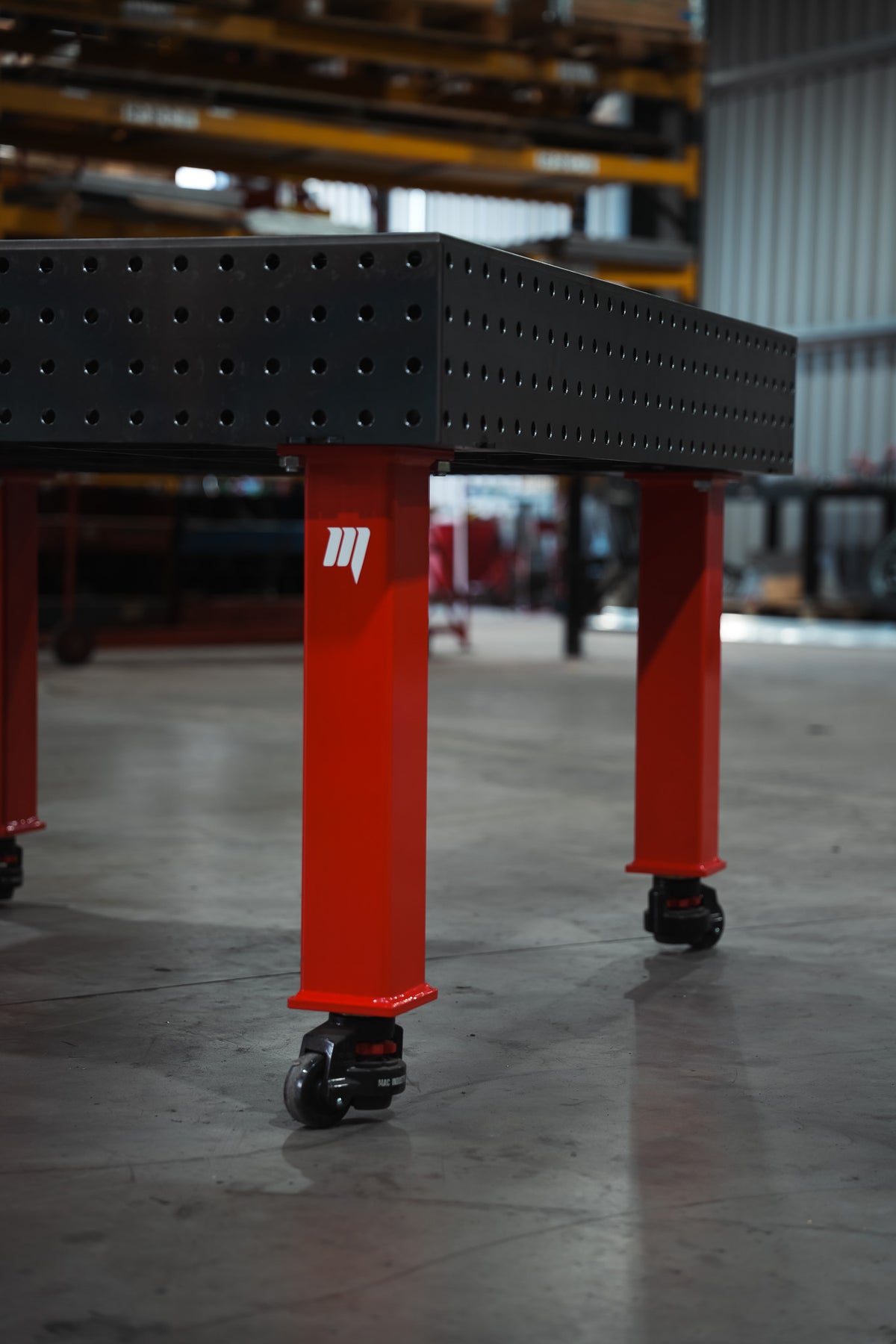

• Table legs made of profile 100x100mm

• Capacity: 850 kg/leg (adjustable footplate not FM Castors)
• Stable and massive construction
• The highest quality of workmanship
• Flatness of the table: ±0.2mm
• Hole systems: 16D (ø16mm holes on 50mm centres) or 28D (ø28mm holes on a 100mm diagonal grid)

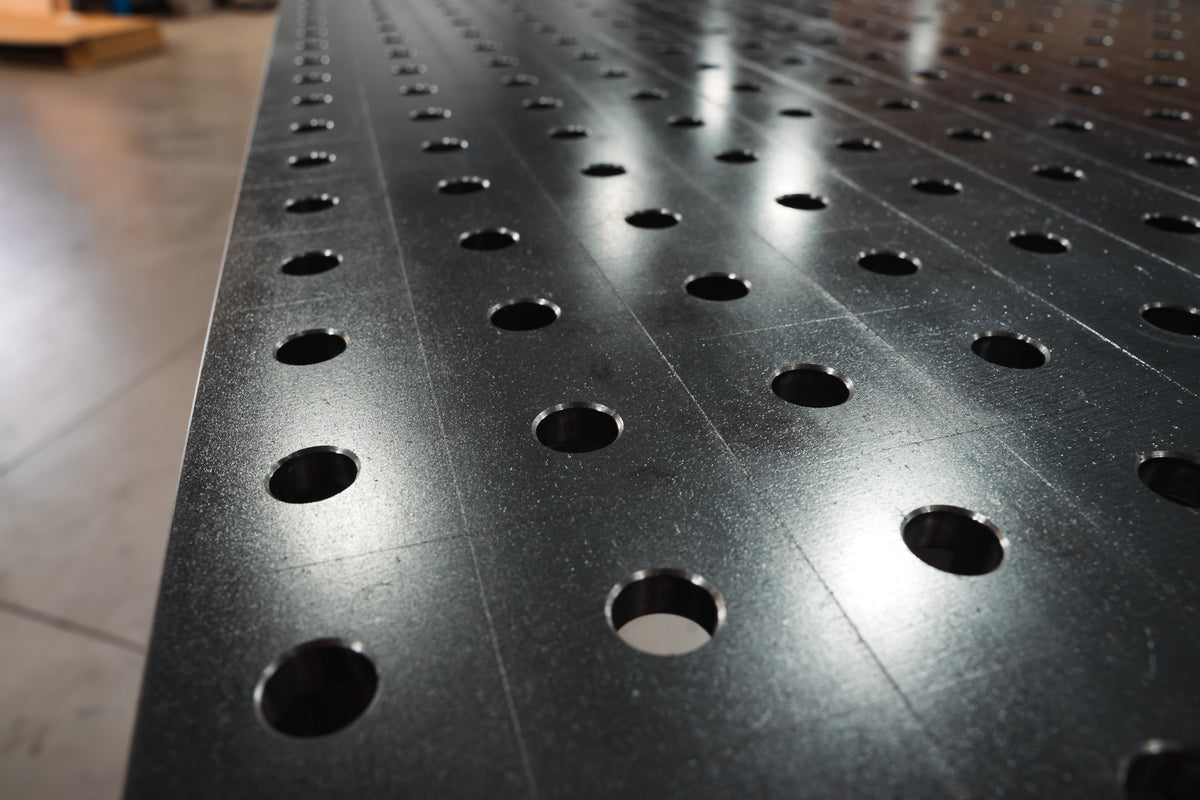

• Chamfered and fibre laser cut holes for easy tool assembly
• Height adjustment of the table with standard legs approx. 880-930mm
• Etched scale in the grid 50x50 or 100x100mm
• Possibility of using stainless steel covers
• Tables can be combined freely to extend a working surface
• All tables are reinforced with structural ribs

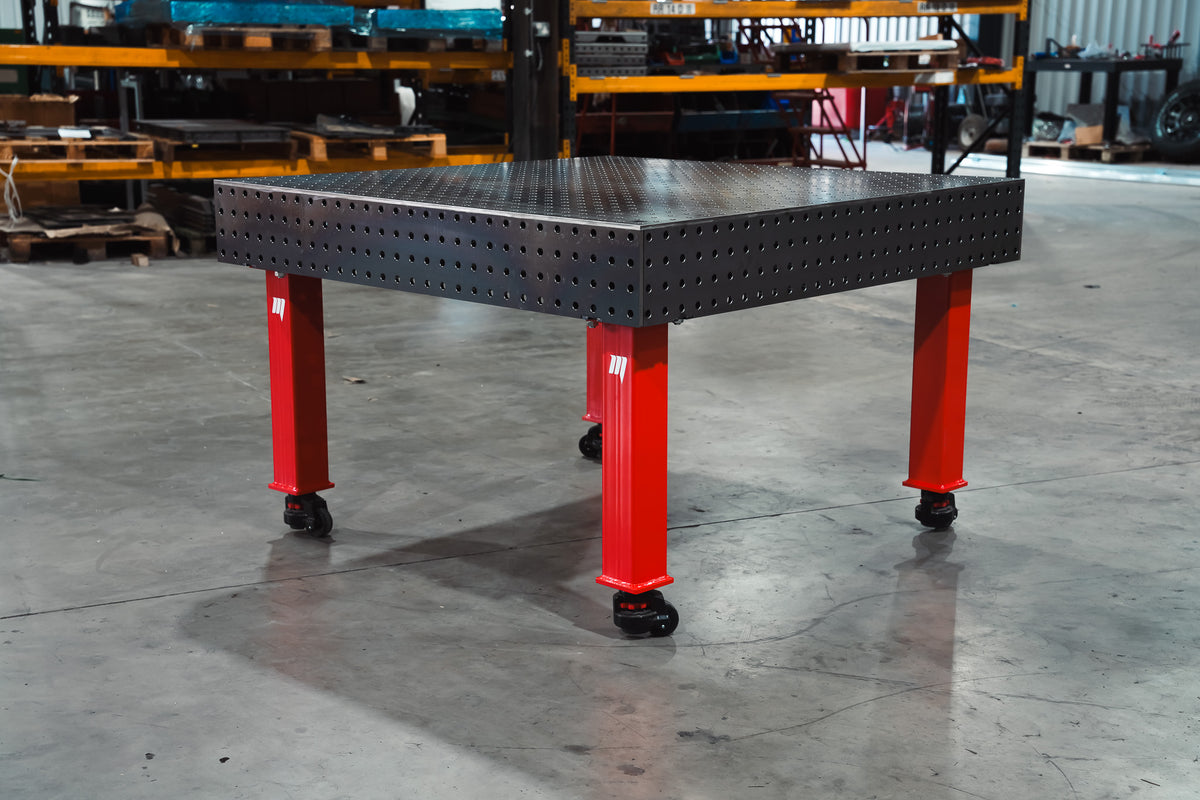

ULTRA Build Options

  Ready Made: We will assemble your table on our inhouse custom jig to ensure a truly flat surface, weld and quality check your item. so soon receiving your table you can get fabricating something awesome!

 Ready Made + Leg Kit: As above but we will all cut, assemble and weld your leg kit along with your table top. You will receive your table fully welded (legs will require fitment). (Customer to advise top of table height during checkout)

 Ready Made + Leg Kit + Castors: As above but we will all cut, assemble and weld your leg kit. You will receive your table fully welded (legs/castors will require fitment). (Customer to advise top of table height during checkout).

ULTRA TABLES sized 2.8x1.4m and above are provided with 6x Legs and castors when selected.

 Leg Kit Detail : 100x100x3 legs – (RED PAINTED)

(Customer to advise top of table height during checkout!)

Castors Detail: Foot master 100S - TABLE TO BE REPOSITIONED / MOVED UNLADEN (NO LOAD ON TABLE)

Please note some pictures shown are computer renders and final product may differ.
