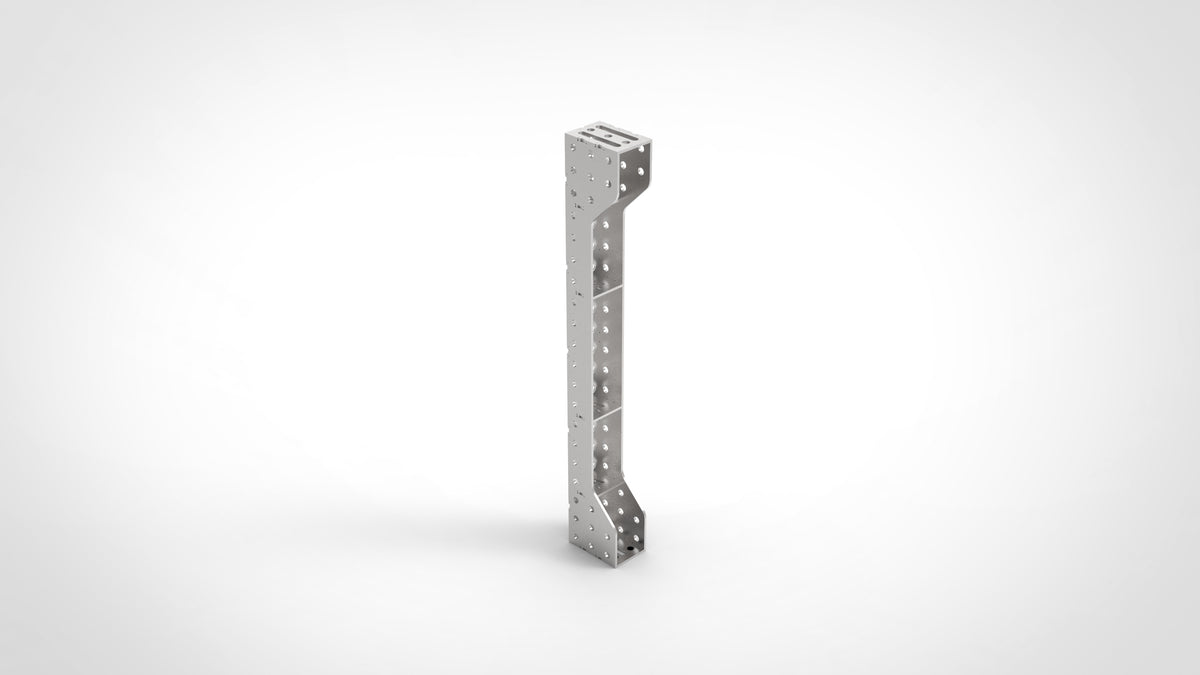

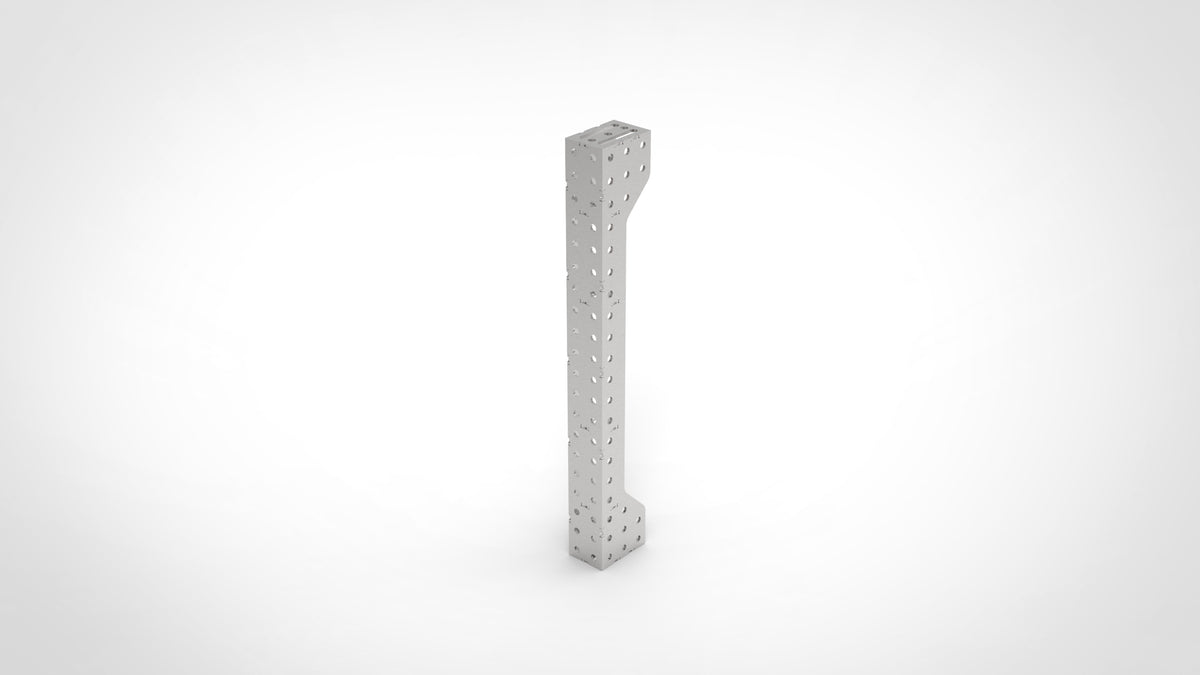

MAC - 1000mm Upright Support Blocks / Stands - Fixture Weld Table Tooling
MAC - 1000mm Upright Support Blocks / Stands - Fixture Weld Table Tooling

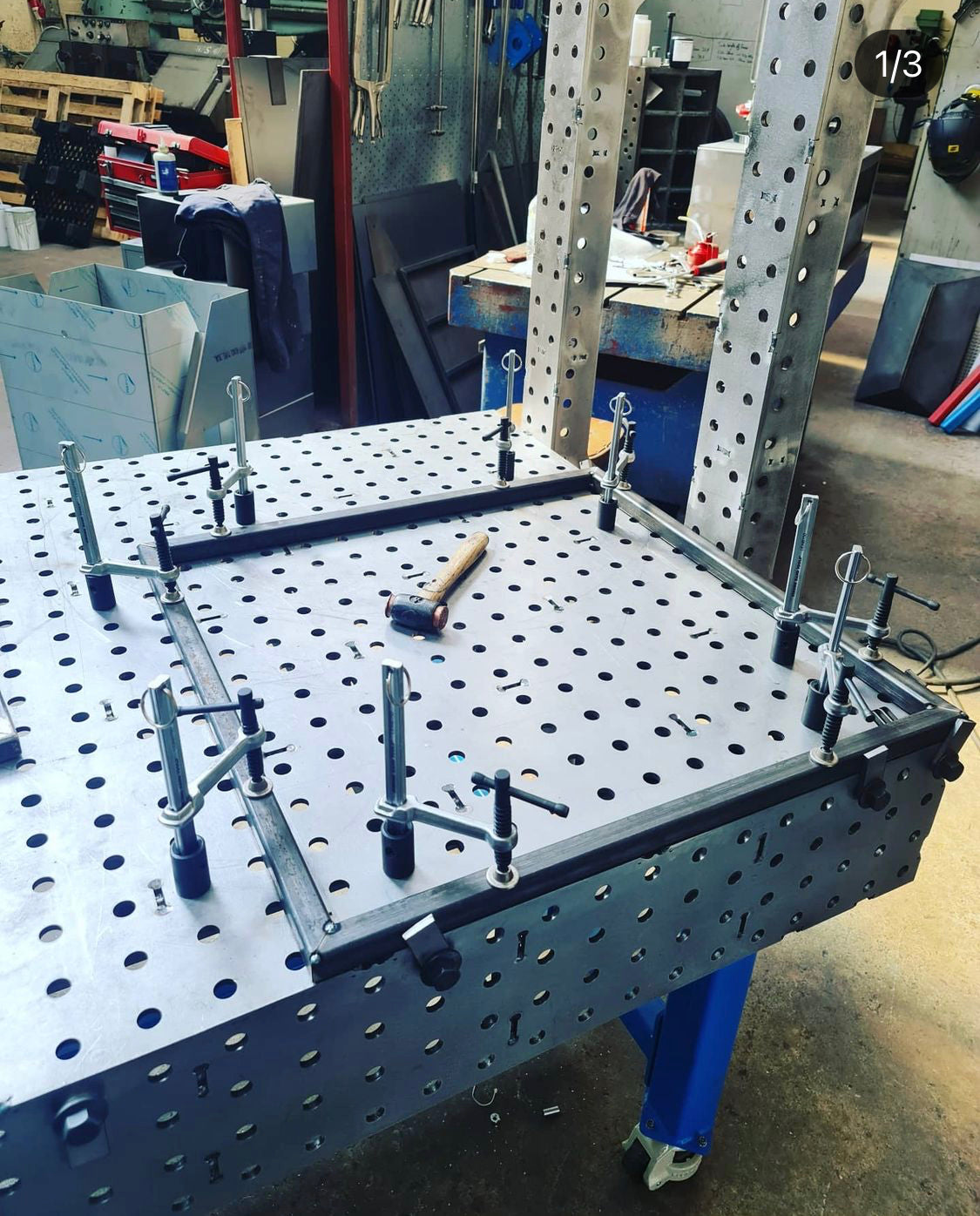

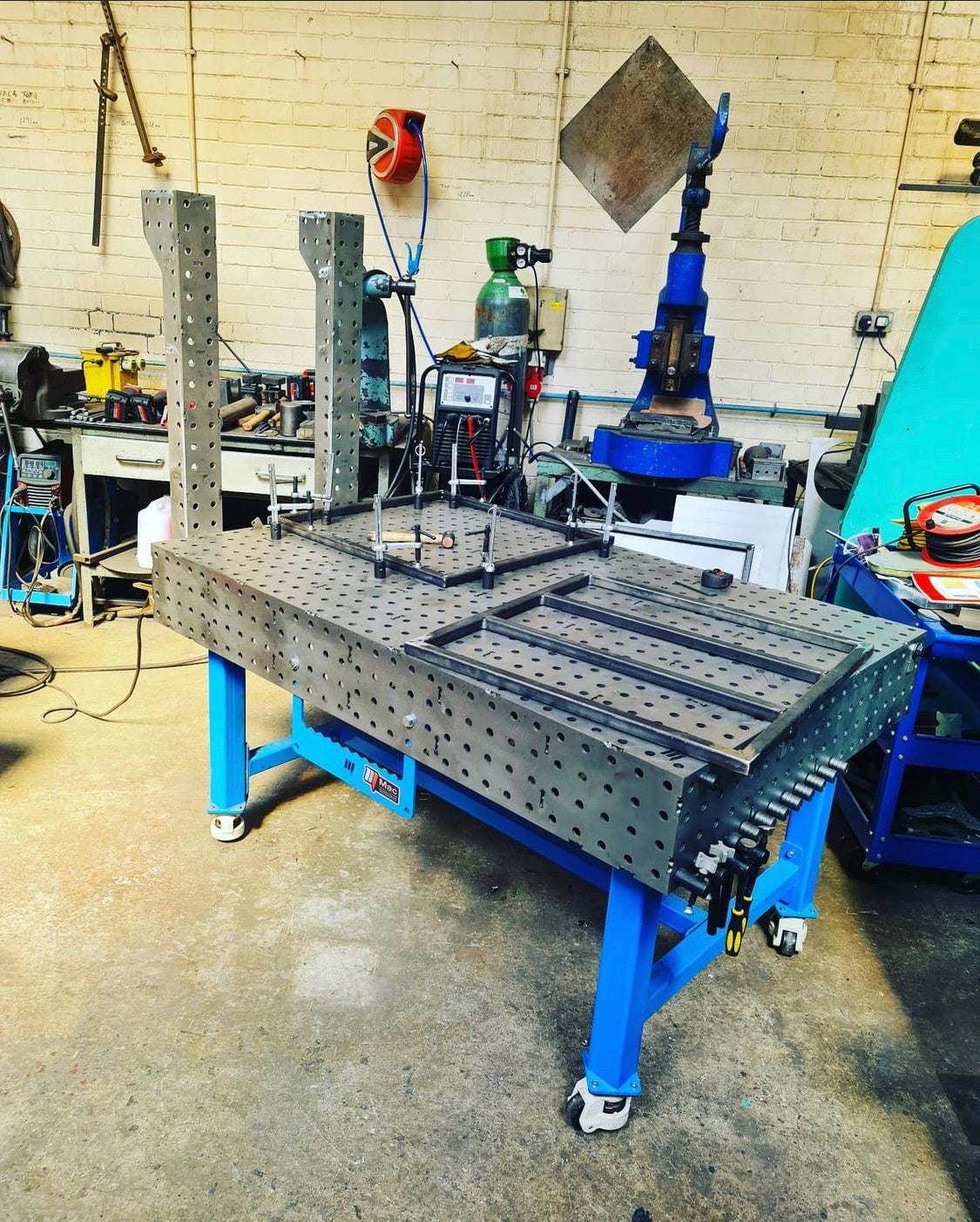

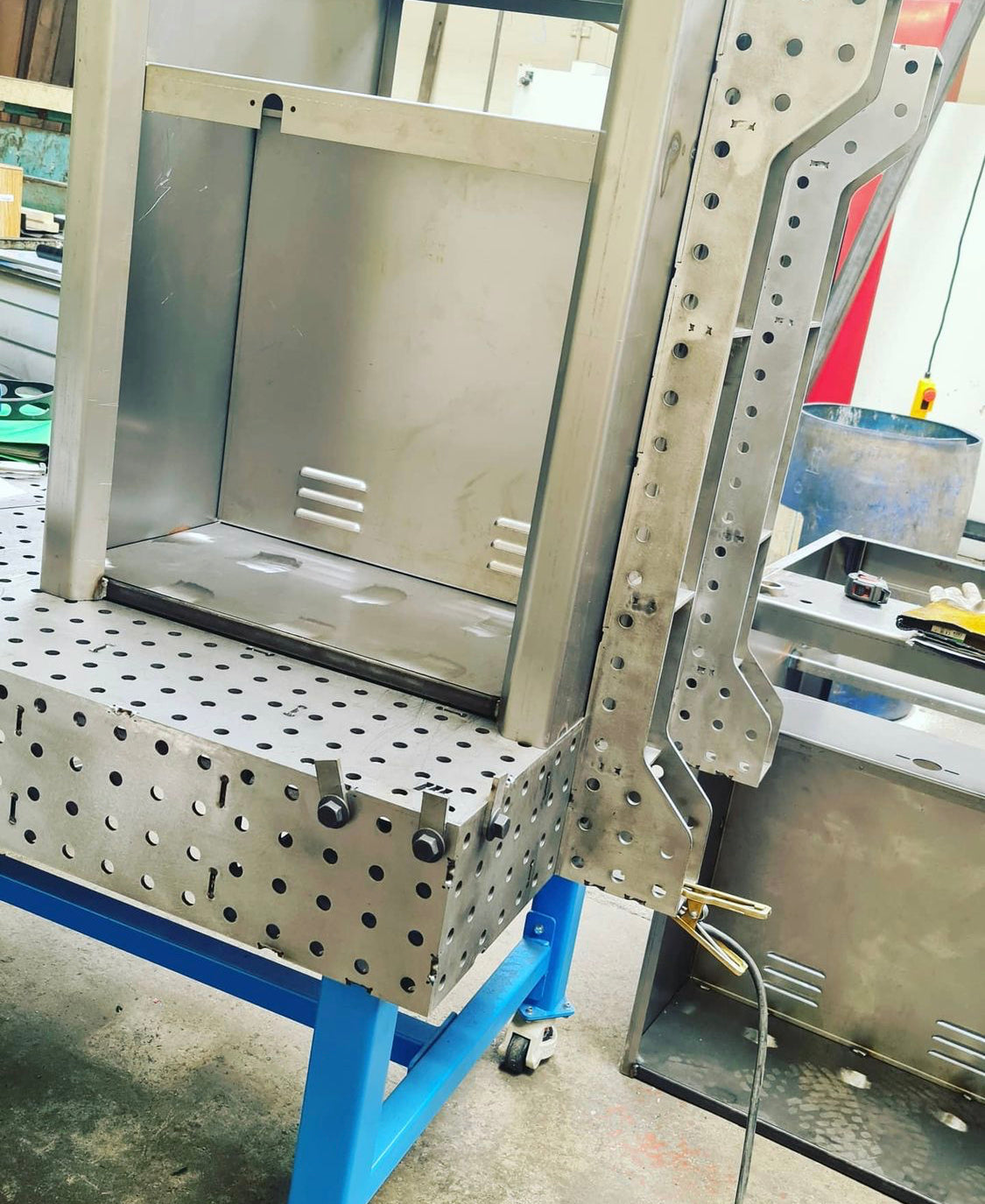

Designed to aid upright supporting when builiding and jigging for example chassis, tables etc. Can be used along with the slotted PRO squares to give full flexibility.
Unlike cast ground (Expensive) squares WeldTrue Squares are manufactured as self-build kits giving you highly accurate low cost tooling.

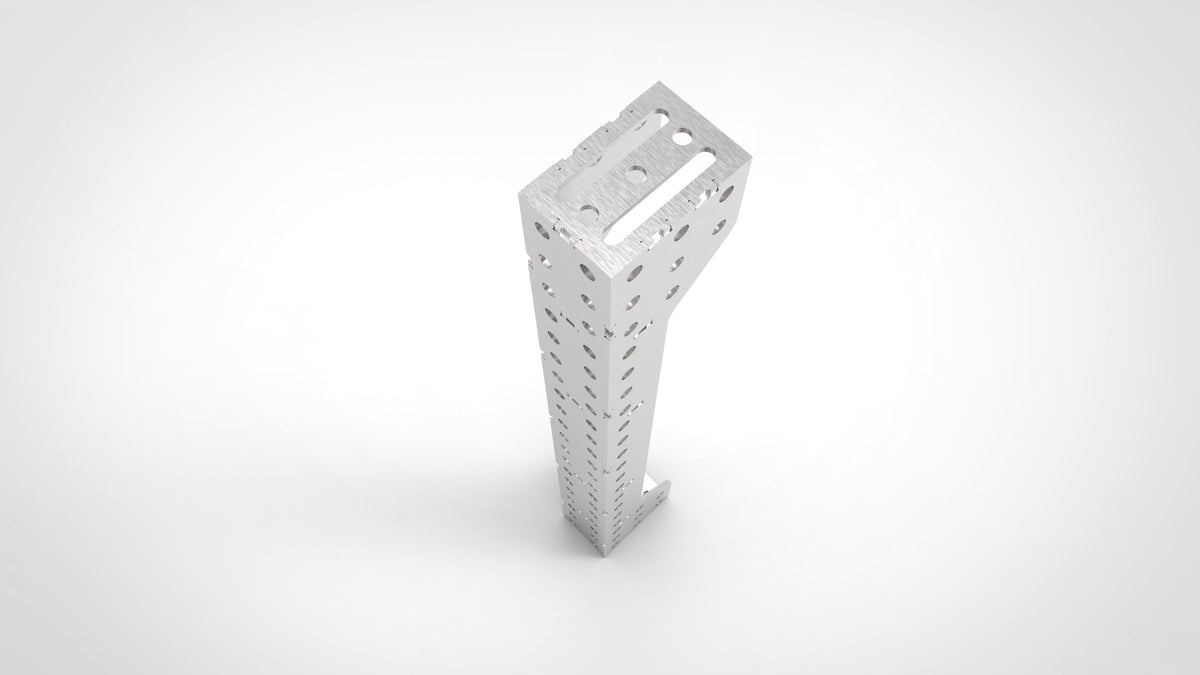

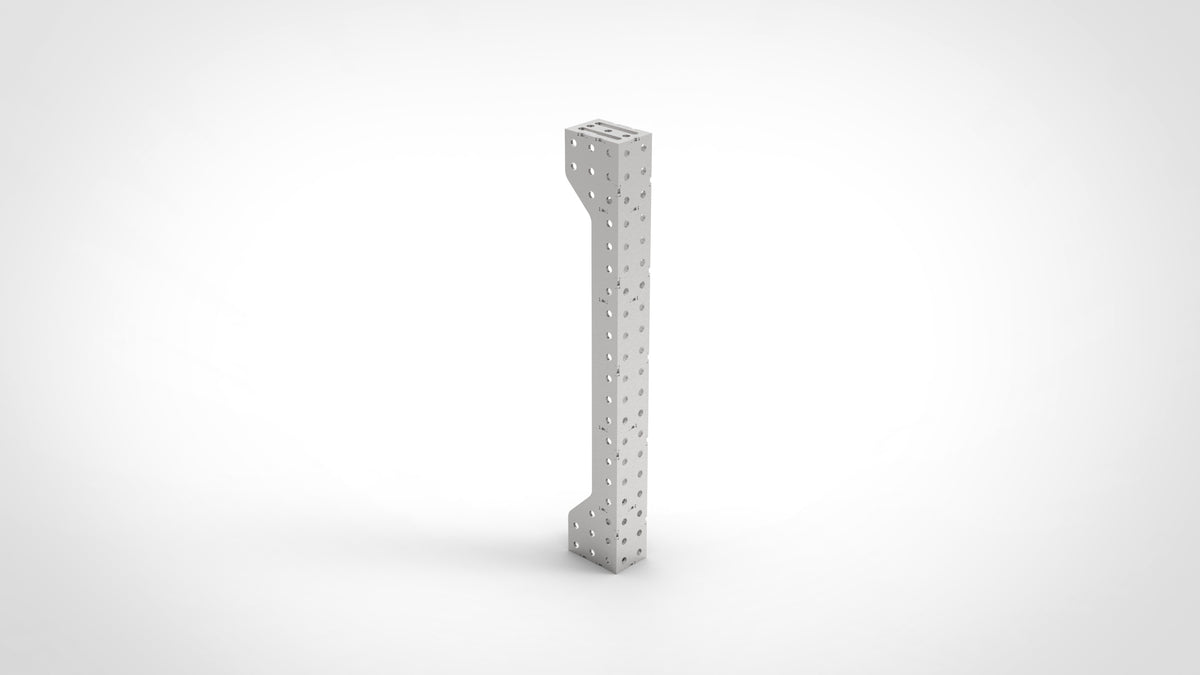

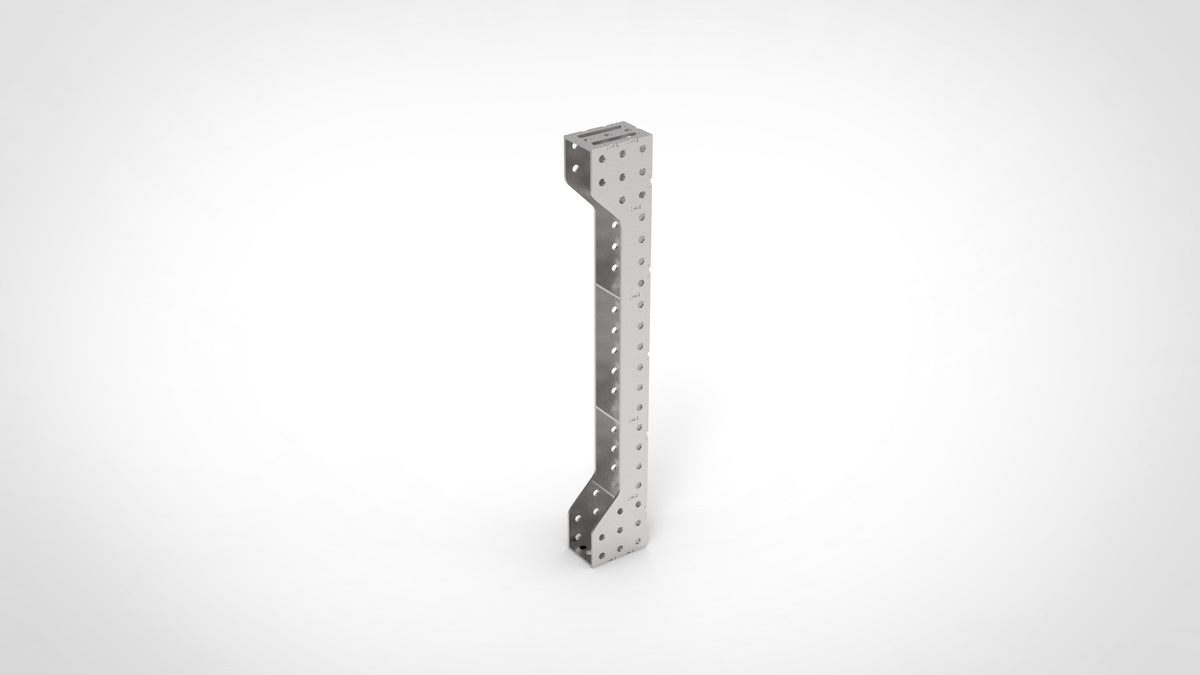

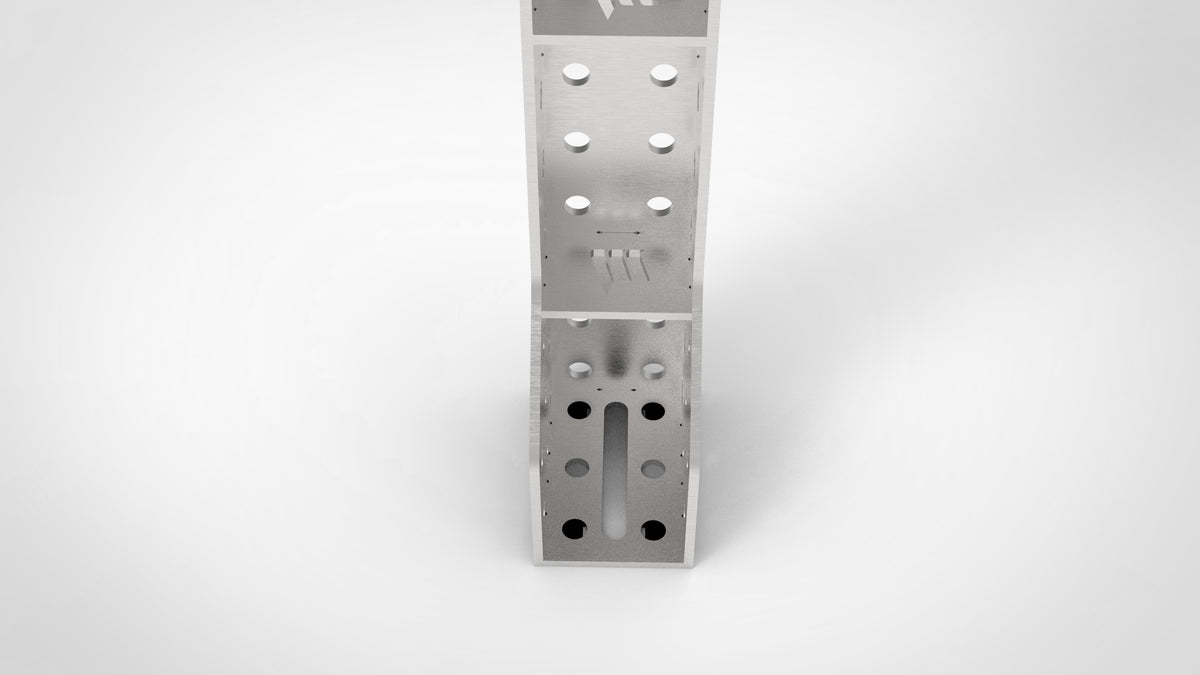

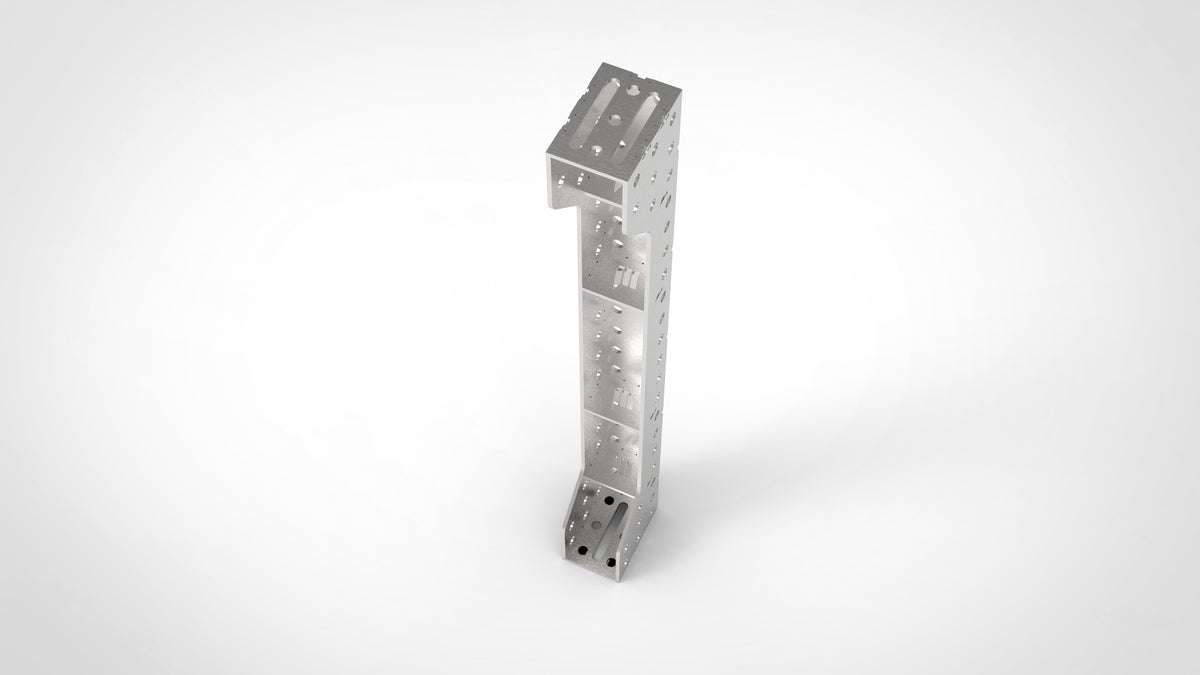

Note: Some images are a computer rendering representation of the product therefore colour & finish may differ.
MEASUREMENTS
A- 1000mm
B- 150mm
C- 250mm
FEATURES
- Engineered in house heat dissipating waved key and slots interlock
- Manufactured from 6mm HRPO Mild Steel (Superior)
- All parts highly accurate CNC Laser cut.
- 16mm securing hole 25mm apart on centres to work with all 16mm tooling and tables
- 90 & 45 Degree sides with corner relief / access
- Extreme precision when constructed correctly
- Can be used and secured both vertical or Horizontal
- Laser cut with a guaranteed tolerance of +/-0.1mm
- Designed and manufactured in the UK
BUILD OPTIONS
1- Self-build - Delivered flat packed ready to self-weld.
2- Pre-Constructed – Mac Industries assemble, weld and quality check your item. (Additional Charge)
