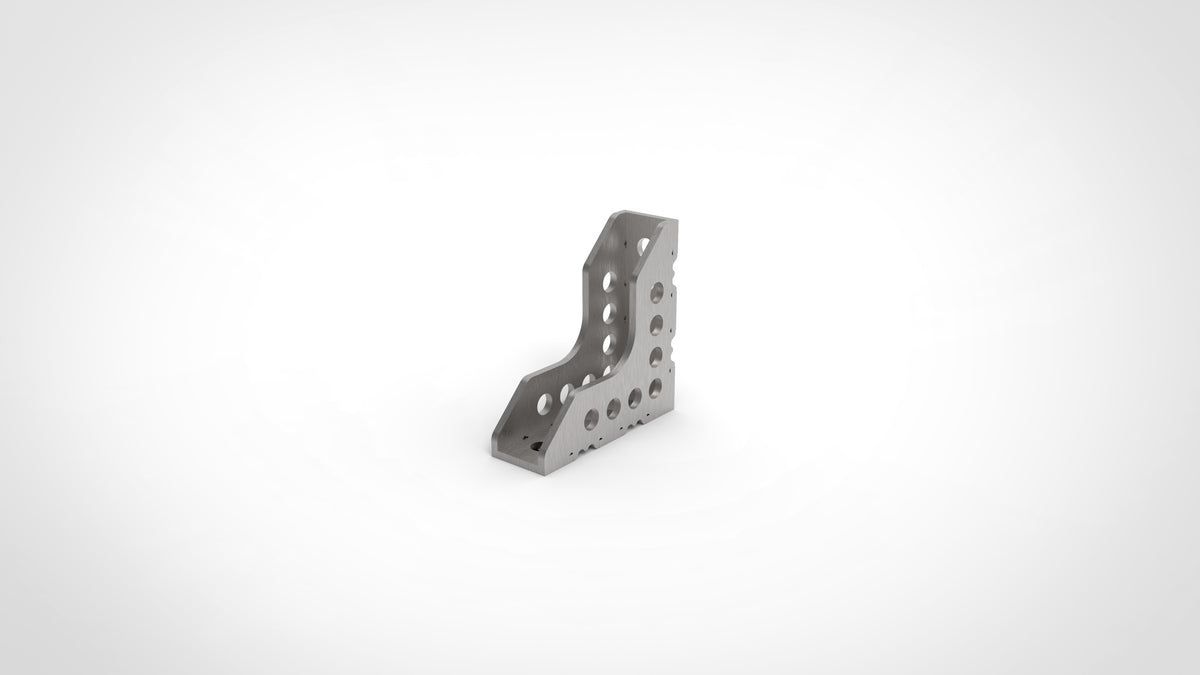

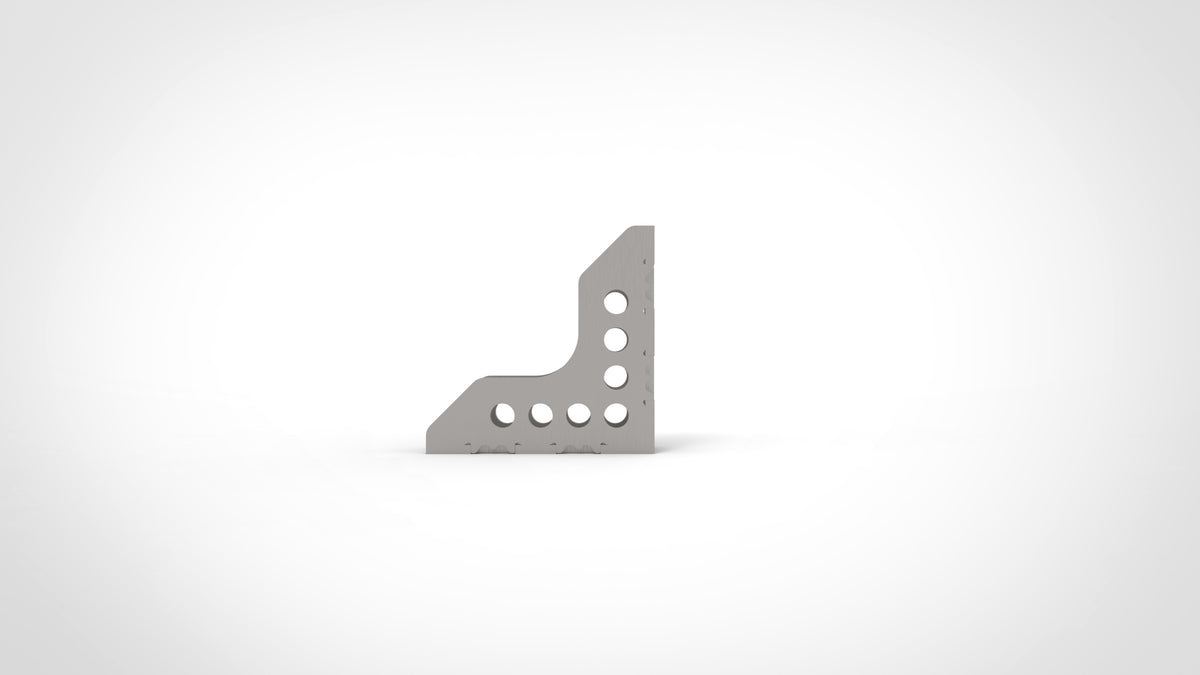

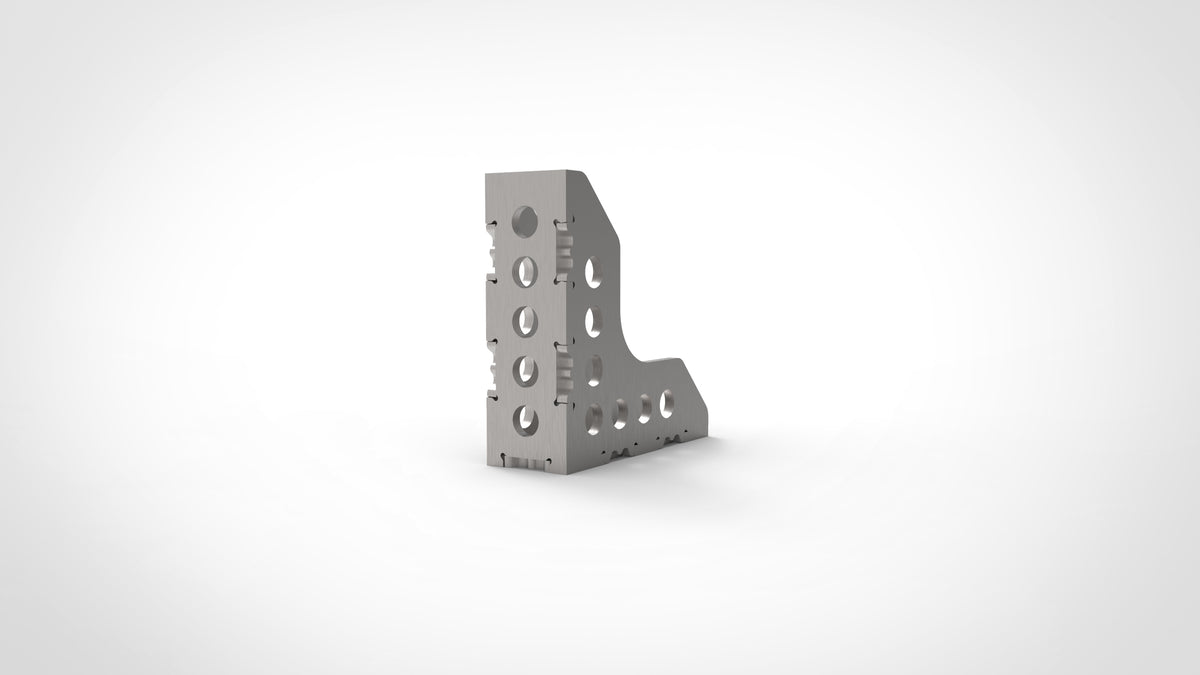

MAC - PRO Square - Mini Slim Jim - Fixture Modular Weld Table Tooling
Modular design to be used with a fixture jig tables with 16mm through holes on 25/50mm centres
Unlike cast ground (Expensive) squares WeldTrue Squares are manufactured as self-build kits giving you accurate low cost tooling.
Note: Some images are a computer rendering representation of the product therefore colour & finish may differ.
NOTE: We do offer this square in a 3 piece starter set (PRO Square 3P Set) Click Here,
MEASUREMENTS
A- 150mm
B- 50mm
C- 150mm
FEATURES
- Engineered in house heat dissipating waved key and slots interlock
- Manufactured from 6mm S275 HRPO Mild Steel (Superior)
- All parts highly accurate CNC Laser cut.
- 16mm securing hole 25mm apart on centres to work with all 16mm tooling and tables
- Precision tooling when constructed correctly
- Can be used and secured both vertical or Horizontal
- Laser cut with a guaranteed tolerance of +/-0.1m
- Designed and manufactured in the UK
BUILD OPTIONS
1- Self-build - Delivered flat packed ready to self-weld.
2- Pre-Constructed – Mac Industries assemble, weld and quality check your item. (Additional Charge)
